Transfer Case Skid Plate - Installation







INSTALLATION

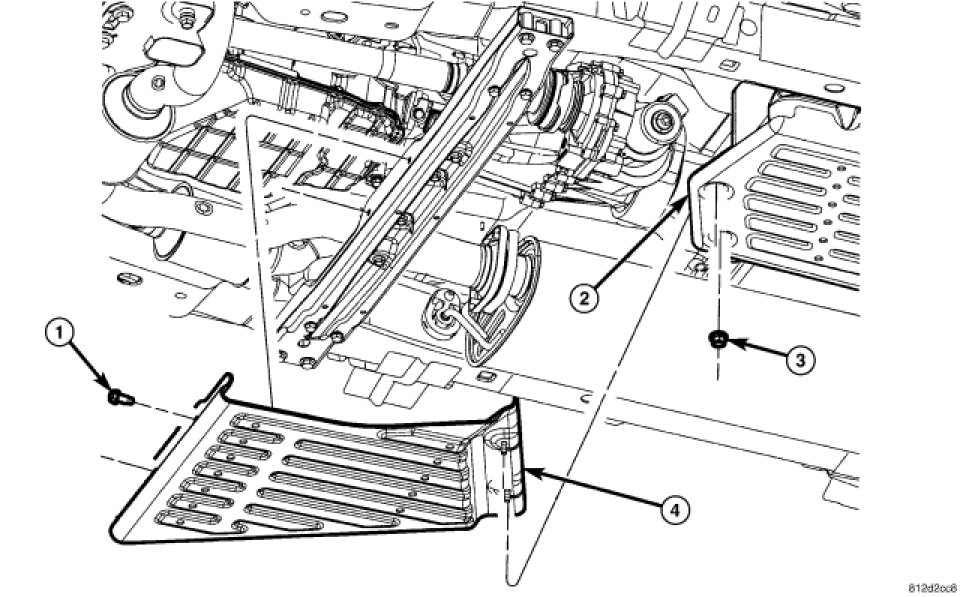

1. Install the skid plate and install the crossmember bolts (1).
2. Tighten the bolts to 47 Nm (35 ft. lbs.).
3. Install the nuts and tighten to 81 Nm (60 ft. lbs.).
