Front Distribution

DESCRIPTION

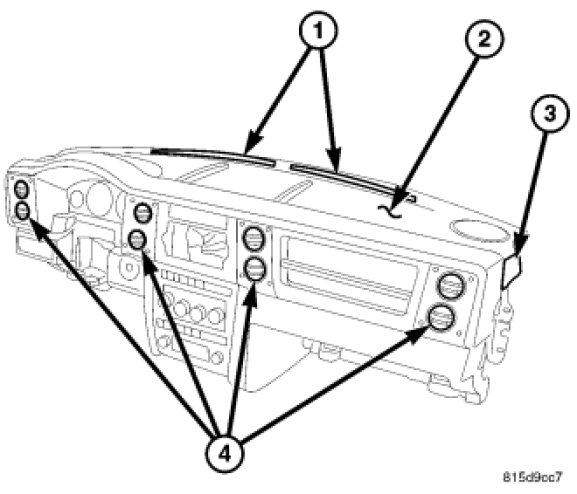

There are two defroster air outlets (1) located on the top of the instrument panel (2). The airflow from the defroster outlets is directed by fixed vanes in the defroster grille and cannot be adjusted. The defroster grille is serviced separately, however, the defroster outlets are not serviceable from the instrument panel top cover.

There are two side window demister air outlets (3). One located on each end of the instrument panel top cover. The airflow from the side window demister air outlets is directed by fixed vanes in the outlets and cannot be adjusted. The side window demister air outlets are not serviceable from the instrument panel top cover.

There are eight instrument panel air outlets (4). Two air outlets are located near each outboard end of the instrument panel facing the rear of the vehicle and two outlets are located on each side of the radio bezel. Each of the instrument panel air outlets contain a non-serviceable grille with movable vanes that are used to direct or shut off the flow of the conditioned air leaving the instrument panel outlets. All of the instrument panel air outlets can be serviced separately.
