Installation
INSTALLATIONNOTE: Install bushings in original position. 1.

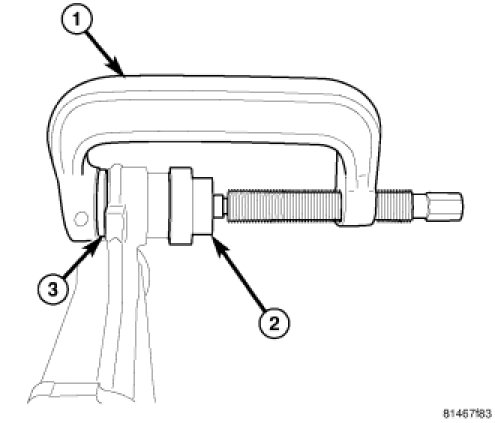

Install axle tube bushing with Press C-4212F (1), bushing Installer 9511 (2) and bushing Receiver 9536-2 (3).
2.

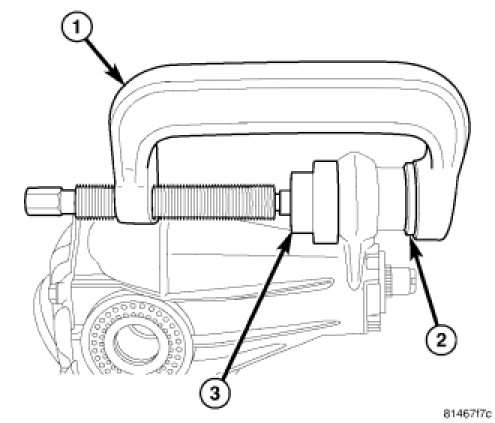

Install pinion nose bushing with Press C-4212F (1), bushing Installer 9536-2 (2) and bushing Receiver 9511(3).
3.
Install new pinion seal, pinion flange and new pinion nut.
