Removal
REMOVAL 1.
Remove axle from vehicle.
2.
Remove pinion flange.
3.
Mark bushings position in the axle.
4.

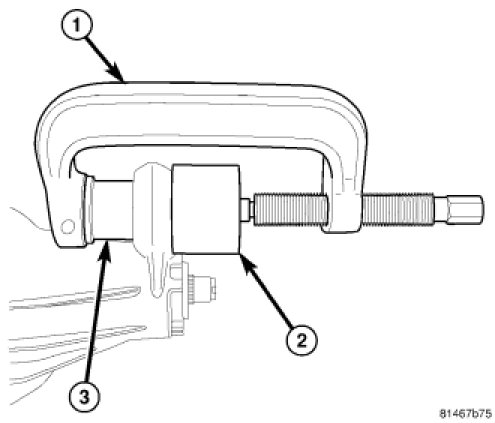

Remove pinion nose bushing with Press C-4212F (1) bushing Receiver 9536 (2) and bushing Remover 9512 (3).
5.
Remove axle tube bushing with Press C-4212F (1) bushing Receiver 9536 (2) and bushing Remover 9512 (3).
