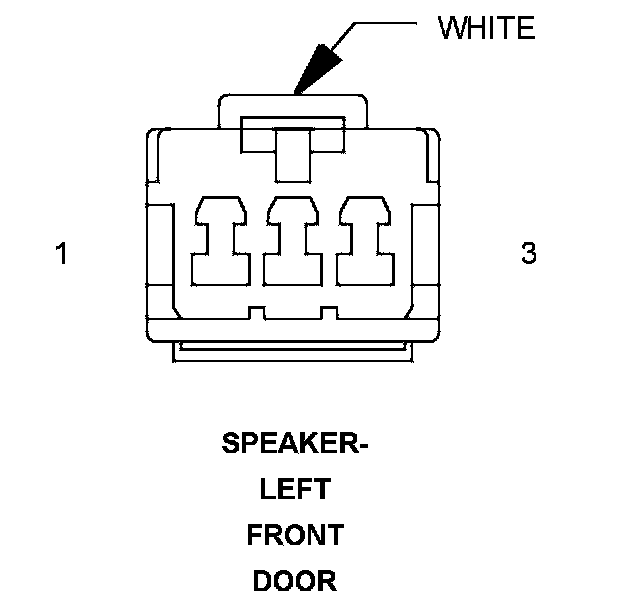

Speaker-Left Front Door
Component ID:
262
Component :
SPEAKER-LEFT FRONT DOOR
Connector:
Name :
SPEAKER-LEFT FRONT DOOR
Color :
WHITE
# of pins :
3
Pin Circuit Description 1
X201 18GY/VT
LEFT FRONT DOOR SPEAKER (+)
Pin Circuit Description 1
X201 18GY/VT
AMPLIFIED LEFT FRONT DOOR SPEAKER (+)
2
-
-
3
X291 18GY/YL
LEFT FRONT DOOR SPEAKER (-)
3
X291 18GY/YL
AMPLIFIED LEFT FRONT DOOR SPEAKER (-)
Component Location - 47
