Defroster Ducts - Installation







INSTALLATION

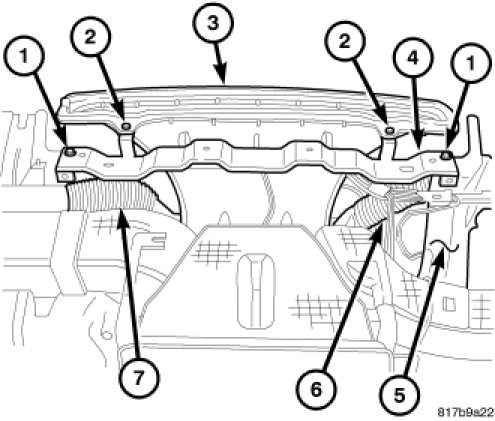

NOTE: Illustration shown with instrument panel removed from vehicle for clarity.

NOTE: LHD model shown. RHD model similar.





1. Position the defroster duct (3) to the top of the instrument panel support (5).
2. Reposition the defroster duct support (4) onto the instrument panel support and install the two retaining screws (1). Tighten the screws to 3 Nm (27 in. lbs.).
3. Install the two screws (2) that secure the defroster duct to the defroster duct support. Tighten the screw to 2.2 Nm (20 in. lbs.).
4. Connect the right demister hose (6) and the left demister hose (7) to the defroster duct.
5. Install the instrument panel top cover Instrument Panel Cover - Installation.
