Installation
INSTALLATION 1.

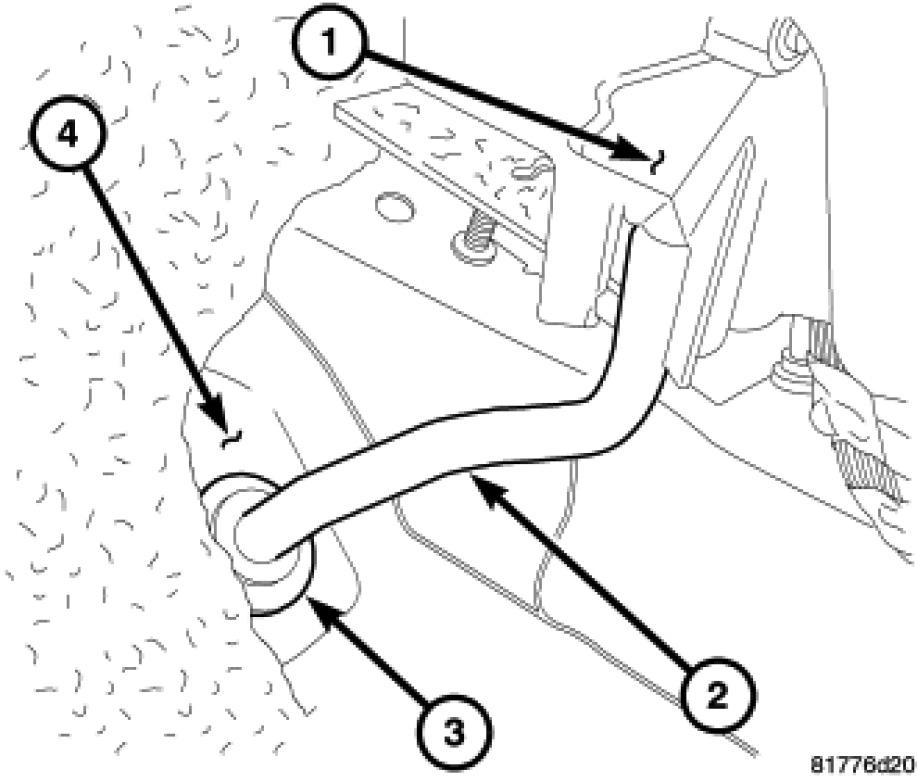

If removed, install the rubber grommet (3) onto the driver side front floor panel (4). Make sure the grommet is fully engaged to the floor panel.
2.
Connect the condensation drain tube (2) onto the drain port located on the bottom of the HVAC housing (1).
3.
Install the condensation drain tube into the rubber grommet.
4.
Reinstall the floor carpet
Carpet - Installation.
