Valve Deactivation Solenoid: Testing and Inspection







MDS SOLENOID

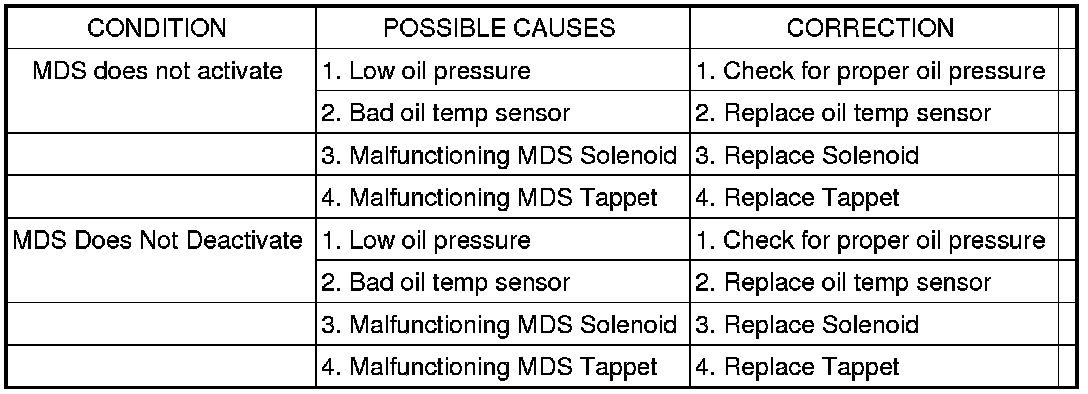

The Multi Displacement System has the following detectable issues:

- Solenoid circuit
- Fail to deactivate a cylinder(s)
- Fail to reactivate a cylinder(s)
- Low oil pressure
