Screen-Video

Component ID: 360

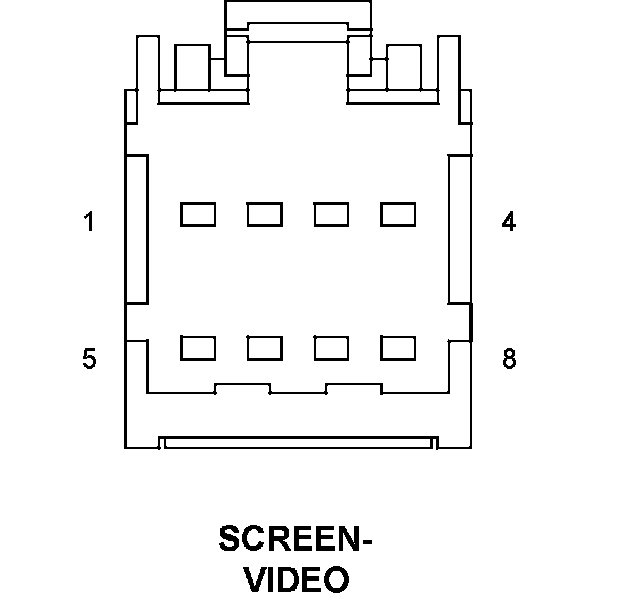

Component : SCREEN-VIDEO

Connector:
Name : SCREEN-VIDEO
Color :
# of pins : 8
Gender : FEMALE




Pin Circuit Description
1 D264 20WT CAN C BUS (-)
2 - -
3 Z910 18BK GROUND
4 A413 18RD FUSED B(+) (I.O.D.)
5 D265 20WT/OR CAN C BUS (+)
6 - -
7 - -
8 - -
