Relay-Trailer Tow-Right

Component ID: 248

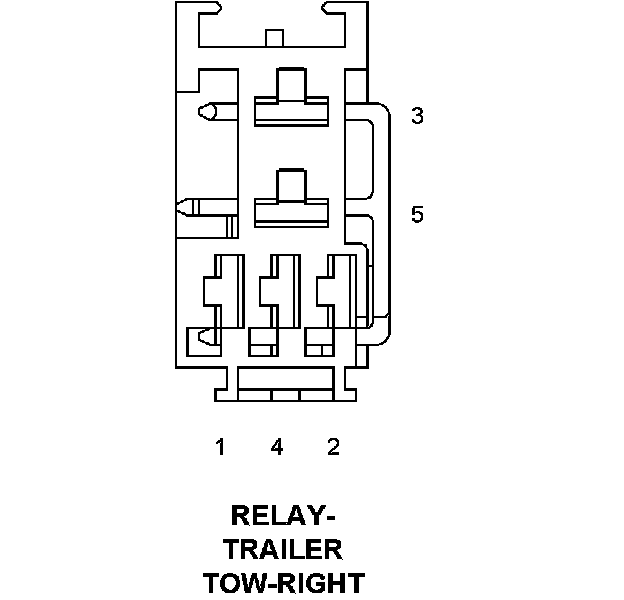

Component : RELAY-TRAILER TOW-RIGHT

Connector:
Name : RELAY-TRAILER TOW-RIGHT
Color :
# of pins : 5
Gender : FEMALE




Pin Circuit Description
1 A206 18RD FUSED B(+)
2 L656 18WT/DG RIGHT TRAILER TOW RELAY CONTROL
3 L674 16LG RIGHT REAR STOP/TURN SIGNAL FEED
4 - -
5 A206 18RD FUSED B(+)

Component Location - 47
