Transfer Case Actuator

Component ID: 222
Component : MOTOR-TRANSFER CASE

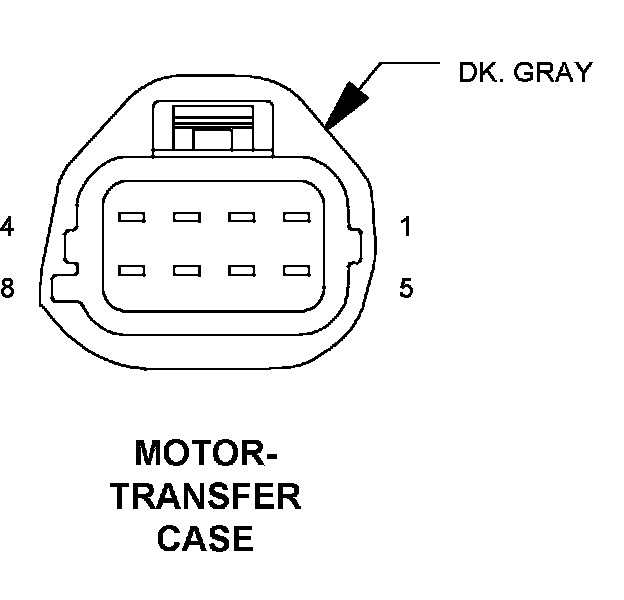

Connector:
Name : MOTOR-TRANSFER CASE
Color : DK. GRAY
# of pins : 8
Gender : FEMALE




Pin Circuit Description
1 K504 20BR DRIVETRAIN 5 VOLT SUPPLY
2 T313 18YL/LG MODE SENSOR SIGNAL
2 T313 20YL/LG MODE SENSOR SIGNAL
3 K594 20BR/LG DRIVETRAIN SENSOR RETURN
4 T315 14YL/BR SHIFT MOTOR CONTROL A
5 T316 14YL/GY SHIFT MOTOR CONTROL B
6 - -
7 - -
8 - -

Component Location - 16




Component Location - 19




Component Location - 15

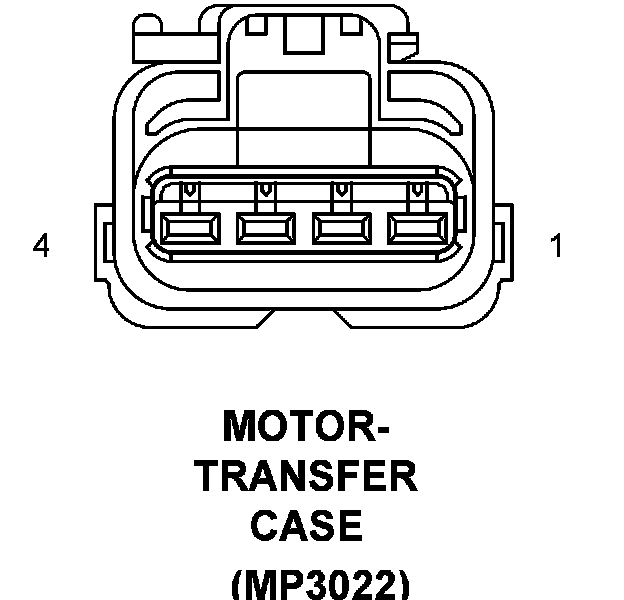

Connector:
Name : MOTOR-TRANSFER CASE C1
Color :
# of pins : 4
Qualifier : (MP3022)
Gender : MALE




Pin Circuit Description
1 T315 12YL/BR SHIFT MOTOR CONTROL A
2 T301 20DG/YL SWITCHED BATTERY SOLENOID SUPPLY
3 T317 20YL/TN STEP MOTOR CONTROL D
4 T316 12YL/GY SHIFT MOTOR CONTROL B

Component Location - 16




Component Location - 19




Component Location - 15

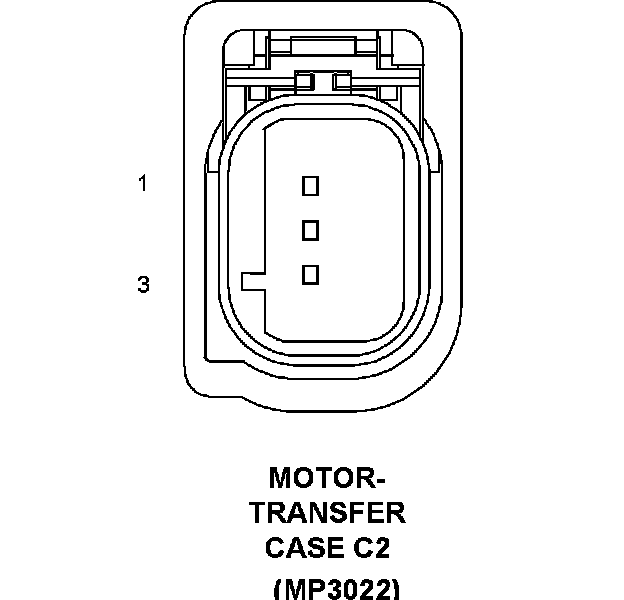

Connector:
Name : MOTOR-TRANSFER CASE C2
Color :
# of pins : 3
Qualifier : (MP3022)
Gender : MALE




Pin Circuit Description
1 K504 20BR DRIVETRAIN 5 VOLT SUPPLY
2 T313 20YL/LG MODE SENSOR SIGNAL
3 K594 20BR/LG DRIVETRAIN SENSOR RETURN

Component Location - 16




Component Location - 19




Component Location - 15
