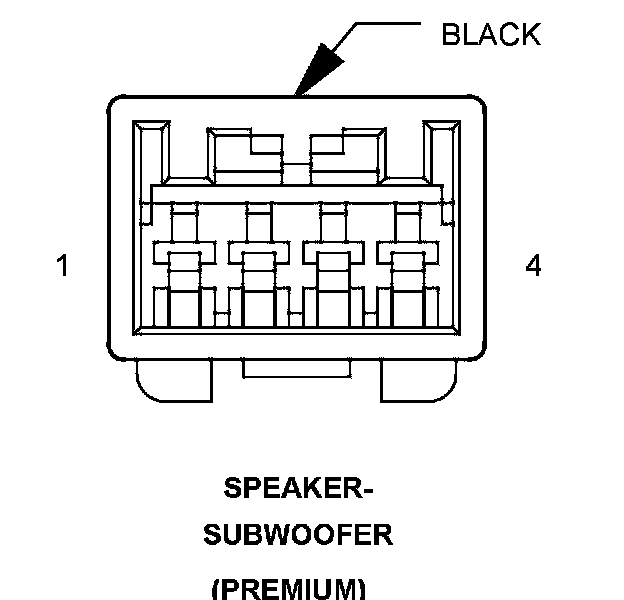

Speaker-Subwoofer
Component ID:
328
Component :
SPEAKER-SUBWOOFER
Connector:
Name :
SPEAKER-SUBWOOFER
Color :
BLACK
# of pins :
4
Qualifier :
(PREMIUM)
Pin Circuit Description 1
X300 18GY/BR
AMPLIFIED SUBWOOFER 1 (+)
2
X390 18DG/BR
AMPLIFIED SUBWOOFER 1 (-)
3
X301 18GY/WT
AMPLIFIED SUBWOOFER 2 (+)
4
X391 18DG/WT
AMPLIFIED SUBWOOFER 2 (-)
Component Location - 22
