Removal

REMOVAL





1. Perform the fuel pressure relief procedure Service and Repair.
2. Disconnect negative cable from battery.
3. Drain cooling system.

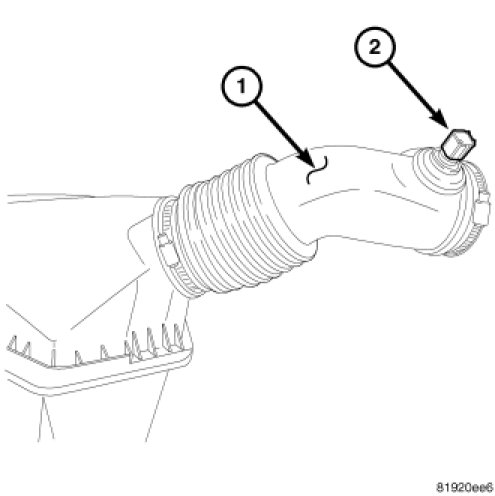

4. Remove the air cleaner hose (1) and housing assembly.




5. Remove the accessory drive belt and belt tensioner.

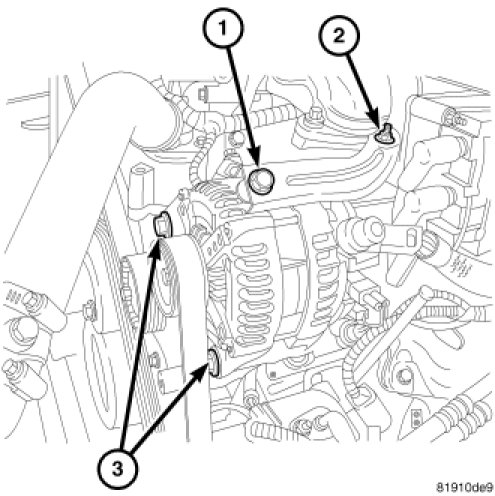

6. Remove the generator (3).
7. Remove the oil level indicator tube.
8. Drain engine oil.




9. Remove oil pan. Removal and Replacement
10. Remove the oil filter (2).
11. Disconnect the oil pressure switch (1).




12. Remove power steering pump fasteners (2) and set pump (1) aside.
13. Disconnect the lower radiator hose.
14. Separate the air conditioning compressor from the engine and set aside.




15. Remove crankshaft vibration damper using special tool #8454 and insert #8450. Vibration Damper - Removal
16. Remove camshaft position sensor (CMP) (4) from timing chain cover Service and Repair.

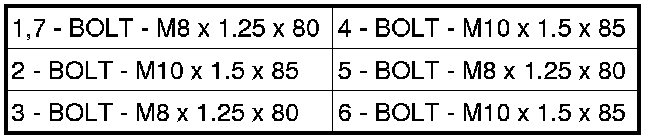

17. Remove the timing chain cover fasteners (1-7) and remove timing chain cover.
