Trailer Connector

Component ID: 351

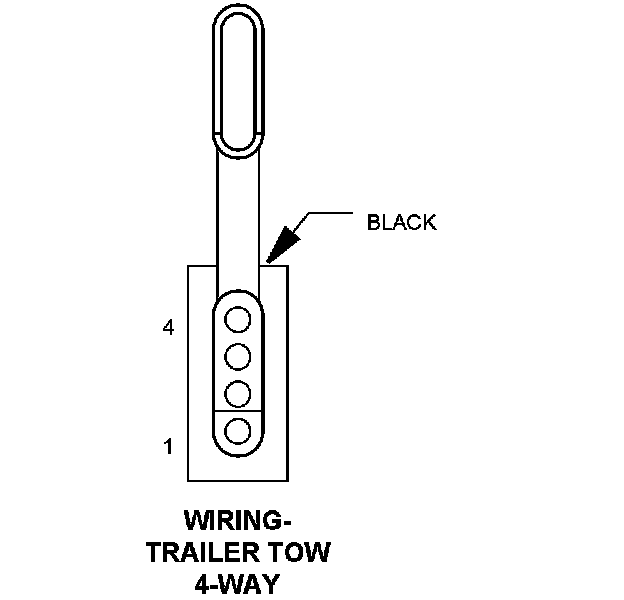

Component : WIRING-TRAILER TOW 4-WAY

Connector:
Name : WIRING-TRAILER TOW 4-WAY
Color : BLACK
# of pins : 4




Pin Circuit Description
1 Z912 18BK GROUND
2 L17 18WT/OR LEFT REAR PARK LAMP CONTROL OUTPUT
3 L63 18WT/DG LEFT REAR STOP/TURN SIGNAL CONTROL
4 L62 18WT/YL RIGHT REAR STOP/TURN SIGNAL CONTROL
