Variable Valve Timing Assembly - Installation
INSTALLATION 1.

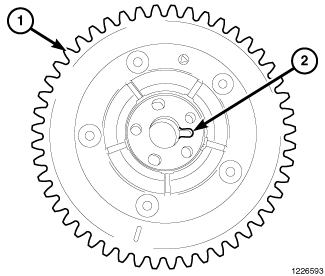

Align the slot (2) in the phaser (1) with the dowel on the
camshaft.
CAUTION: Never attempt to disassemble the camshaft phaser, severe engine damage could result. 2.

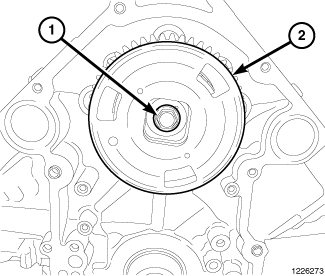

Position the phaser (2) in place and install phaser retaining bolt (1) and tighten to 122 Nm (90 ft. lbs.).
3.
Install the
timing chain and sprockets
Timing Chain & Sprockets - Installation
