Oil Intake Control Valve - Installation
INSTALLATIONNOTE: Ensure that the O-ring is fully seated into the cylinder block. 1.

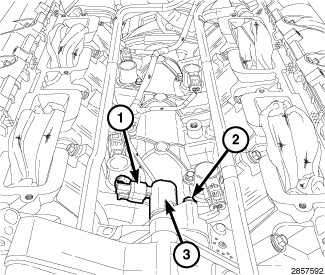

Position the oil control valve (3) into the cylinder block.
2.
Securely tighten the oil control valve retaining bolt (2).
3.
Connect the oil control valve electrical connector (1).
4.
Install the
intake manifold Intake Manifold - Installation.
