Crankshaft Main Bearing
CRANKSHAFT MAIN BEARINGTighten the main bearing cap bolts
13 Nm (10 ft. lbs.).
Tighten the main bearing cap bolts
27 Nm (20 ft. lbs.).
Rotate the bearing main cap bolts an additional
90°.
Tighten the crossbolts
28 Nm (21 ft. lbs.).
CRANKSHAFT MAIN BEARING JOURNALSBearing Clearance
0.023 - 0.051 mm (0.0009 - 0.002 in.)

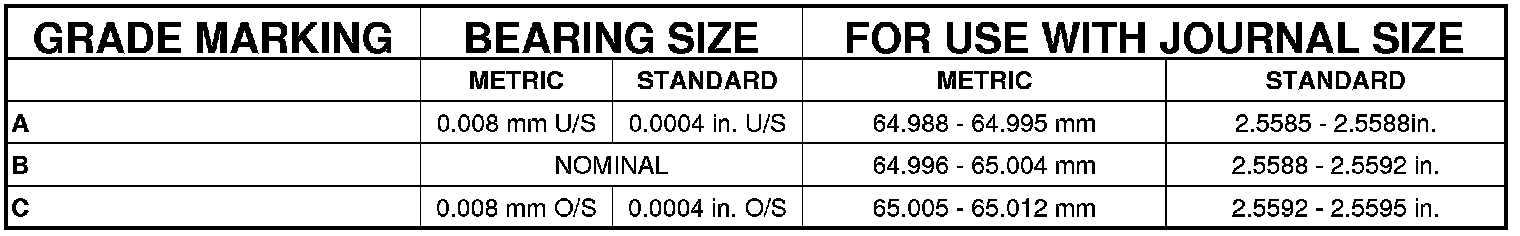

MAIN BEARING SELECTION CHART - 5.7L
