Cylinder Head Assembly

CYLINDER HEAD

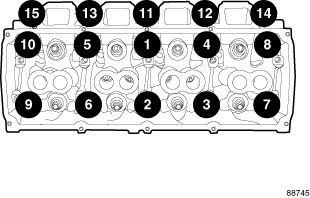

Tighten the cylinder head bolts 1 through 10 34 Nm (25 ft. lbs.).
Tighten the cylinder head bolts 11 through 15 20 Nm (15 ft. lbs.).
Tighten the cylinder head bolts 1 through 10 54 Nm (40 ft. lbs.).
Tighten the cylinder head bolts 11 through 15 20 Nm (15 ft. lbs.).
Rotate the cylinder head bolts 1 through 10 90°.
Tighten the cylinder head bolts 11 through 15 34 Nm (25 ft. lbs.).






WARPAGE

If tolerances exceed 0.0508 mm (0.002 in.) replace the cylinder head.






CAMSHAFT BEARING CAP

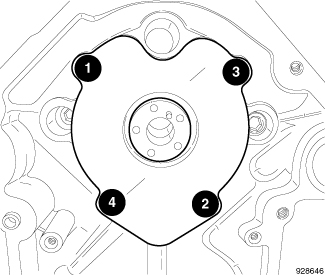

Tighten the camshaft thrust plate retaining bolts 28 Nm (21 ft. lbs.).

INTAKE MANIFOLD
Intake Manifold Specifications

EXHAUST MANIFOLD
Exhaust Manifold Specifications

CAMSHAFT GEAR/SPROCKET
Camshaft Gear/Sprocket Specifications
