Variable Line Pressure Sensor - Installation
INSTALLATION 1.

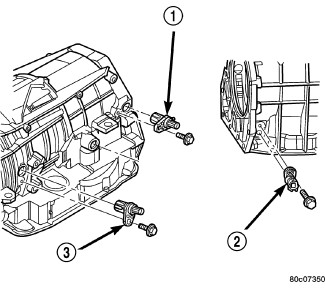

Install the line pressure sensor (2) into the transmission case.
2.
Install the bolt to hold the line pressure sensor (2) into the transmission case. Tighten the bolt to 12 Nm (105 in.lbs.).
3.
Install the wiring connector onto the line pressure sensor (2).
4.
Verify the transmission fluid level. Add fluid as necessary.
5.
Lower vehicle.
