Liftgate - Removal

REMOVAL

Special Tools:










1. Open and support the liftgate.

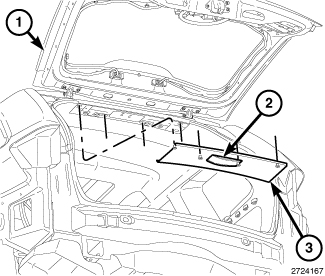

2. Using a trim stick or equivalent, remove the upper rear headliner trim.

WARNING: Do not disconnect the support rod cylinders with the liftgate closed. The support rod pistons are operated by high pressure gas. This pressure could cause damage and/or personal injury if they are removed while the pistons are compressed.

WARNING: Failure to follow these instructions may result in possible serious or fatal injury.





3. Remove the support struts (2) from the liftgate(1). Gas Prop - Removal





4. Disconnect the wire harnesses and the washer hose.
5. Using a grease pencil or equivalent, mark the hinge location.
6. Remove the liftgate to body fasteners (1 and 3) and remove liftgate from vehicle.
