Water Pump - Installation

GAS ENGINE

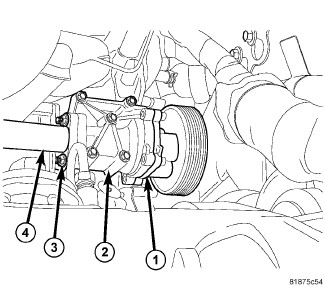

1. Position water pump assembly (1) and gasket onto cylinder block.
2. Position water inlet tube (4) and gasket onto water pump (1).
3. Install mounting bolts (2). Tighten bolts to 24 Nm (18 ft. lbs.).
4. Install drive belt splash shield.
5. Lower vehicle.
6. Install accessory drive belt Serpentine Accessory Drive Belt - Installation.
7. Evacuate air and refill cooling system.
8. Check cooling system for leaks. . Cooling System
