Instrument Panel Bezel - Removal






REMOVAL

Special Tools:










1. Remove the cluster bezel. Instrument Cluster Bezel - Removal

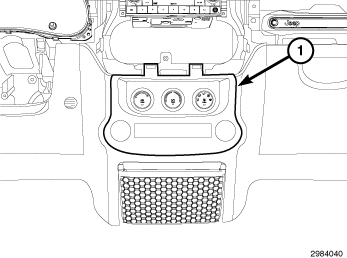

2. Using a trim stick or equivalent, release the clips (2) and lower the center trim (1).
3. Disconnect the HVAC electrical connectors and remove the bezel. A/C And Heater Control - Removal
