Hands Free Module (HFM) - Removal

REMOVAL

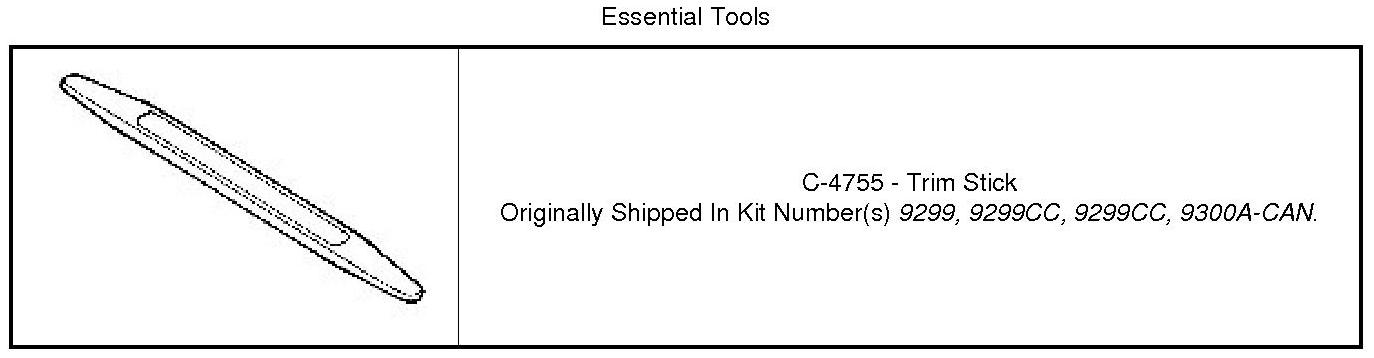

Special Tools:










1. Disconnect and isolate battery negative cable.
2. Remove the bolts (2) and remove the drivers side silencer panel (1).





3. Using a (C-4755) or equivalent, separate the steering column trim ring (1).





4. Using a (C-4755) or equivalent, separate the retaining clips and remove the cover (1).





5. Remove the driver side end cap (1).






NOTE: The HFM is mounted at the driver end of the instrument panel.

6. Through the instrument panel end support remove the lower HFM (2) retainer (1).





7. Disconnect the HFM electrical connectors (1).
8. Remove the upper HFM retainer (2) and remove the HFM.
