Trailer Hitch - Installation
INSTALLATION 1.

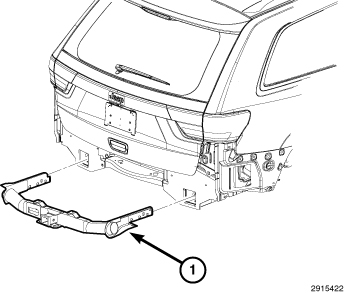

Install the hitch (1).
2.

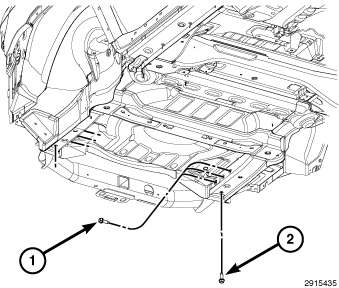

Install the bolts (1 and 2)
3.
Tighten the six horizontal bolts (1) to 165 Nm (122 ft. lbs.).
4.
Tighten the two vertical bolts (2) to 165 Nm (122 ft. lbs.).
5.

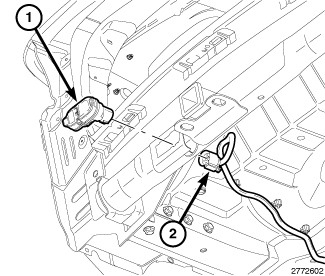

Connect the
trailer connector wire harness (2).
NOTE: 7-way connector shown, 4 way similar. 6.
Install the rear fascia.
