Floor Console - Installation






INSTALLATION

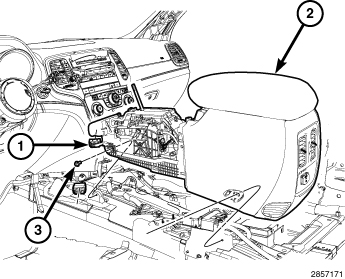

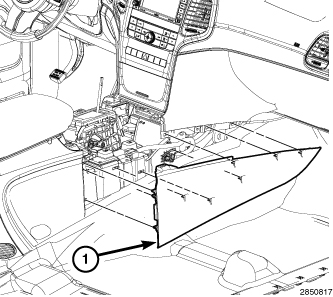

1. Position the floor console (2) back into the vehicle and connect the electrical connector (1).
2. Install the side screws (3) and tighten to 7 Nm (62 in. lbs.)

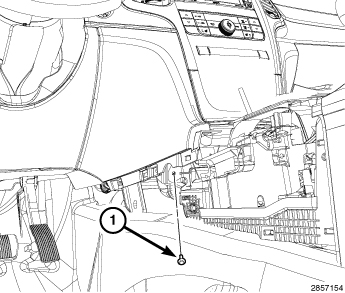

3. Install the front screws (1).





4. Connect the shifter cable (2) to the shifter (1).

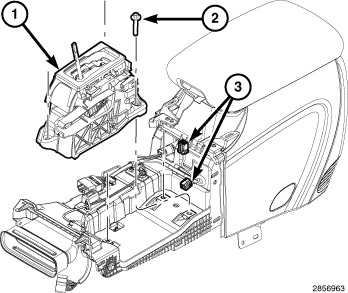

5. Install the shifter assembly (1) and install the bolts (2).
6. Tighten the bolts (2) to 7 Nm (62 in. lbs.)
7. Connect the shifter electrical connectors (3).





8. Position the side covers (1) back into place and seat the clip fasteners fully.
9. Install the shift bezel. Shifter Bezel - Installation





10. Place the seats into the full forward positions.
11. Install the screws and tighten to 7 Nm (62 in. lbs.).

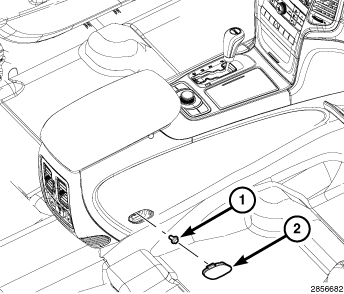

12. Install the screw covers (2) and seat fully.
