Engine Specifications

SPECIFICATIONS

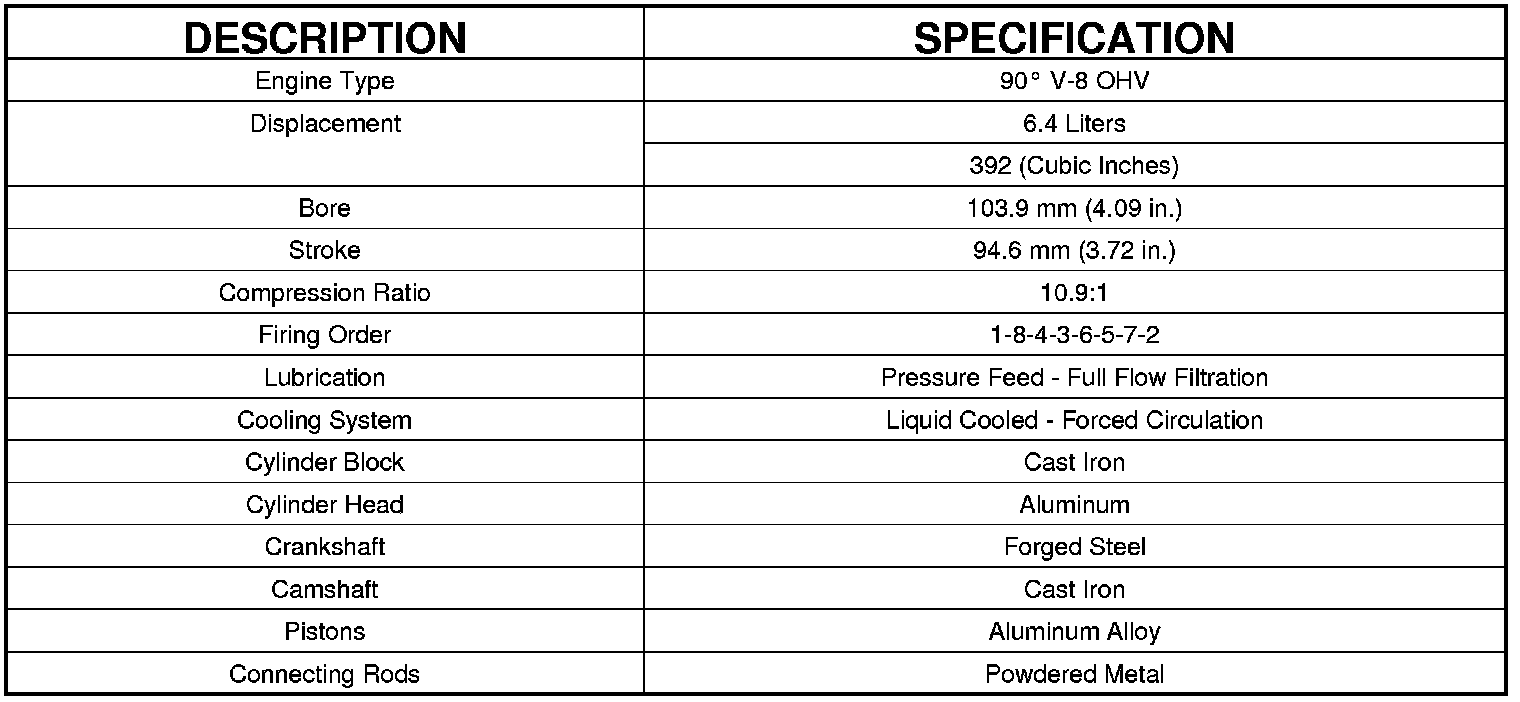

GENERAL DESCRIPTION

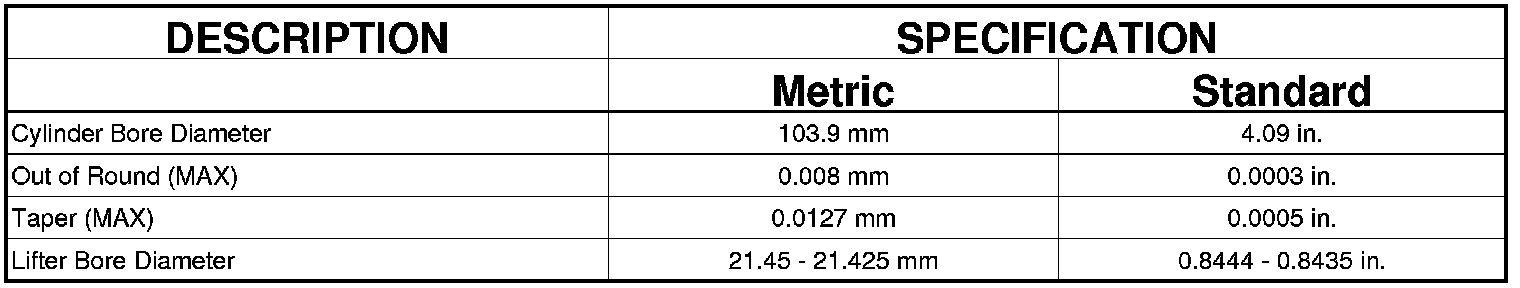

CYLINDER BLOCK

PISTONS

PISTON RINGS

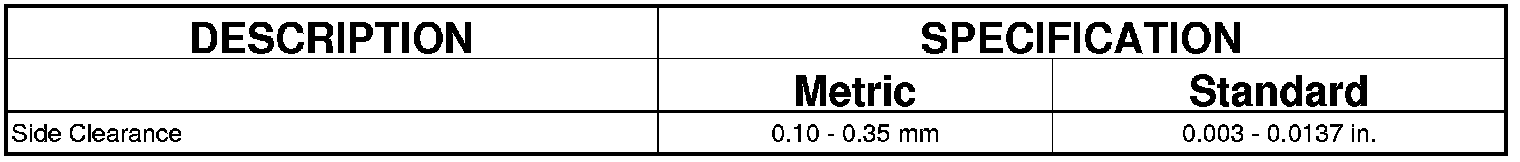

CONNECTING RODS

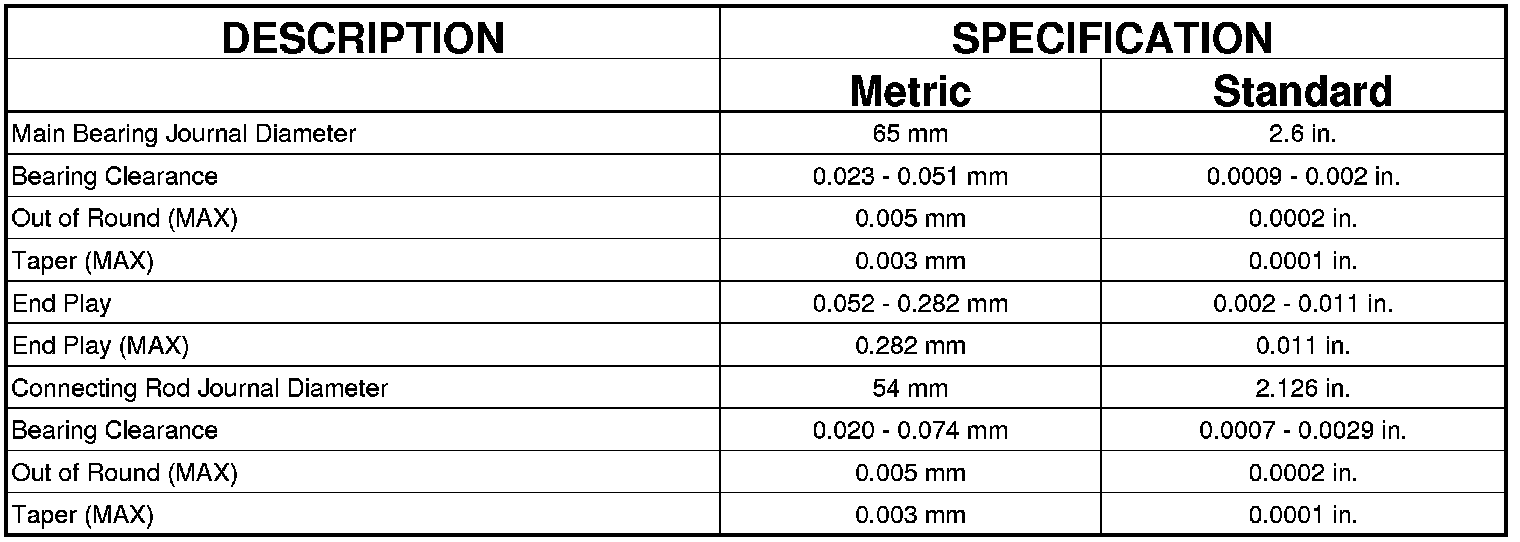

CRANKSHAFT

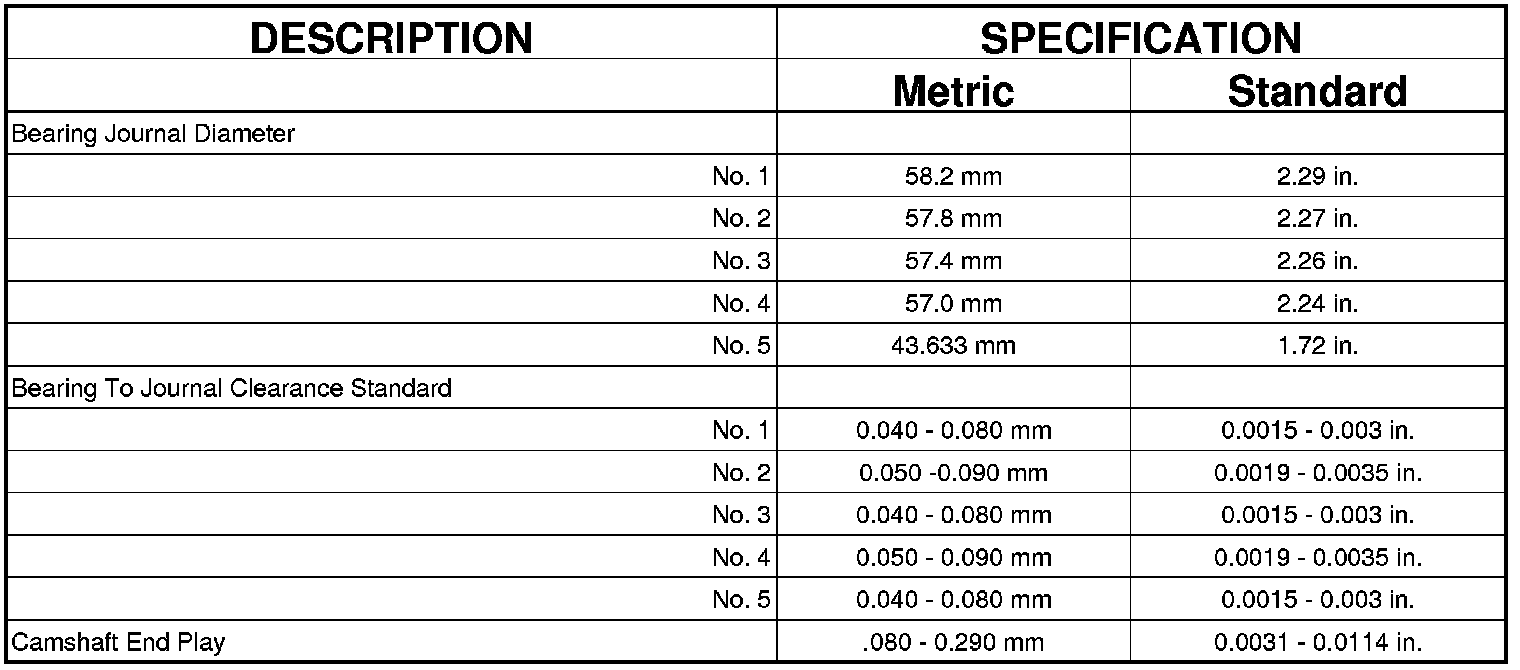

CAMSHAFT

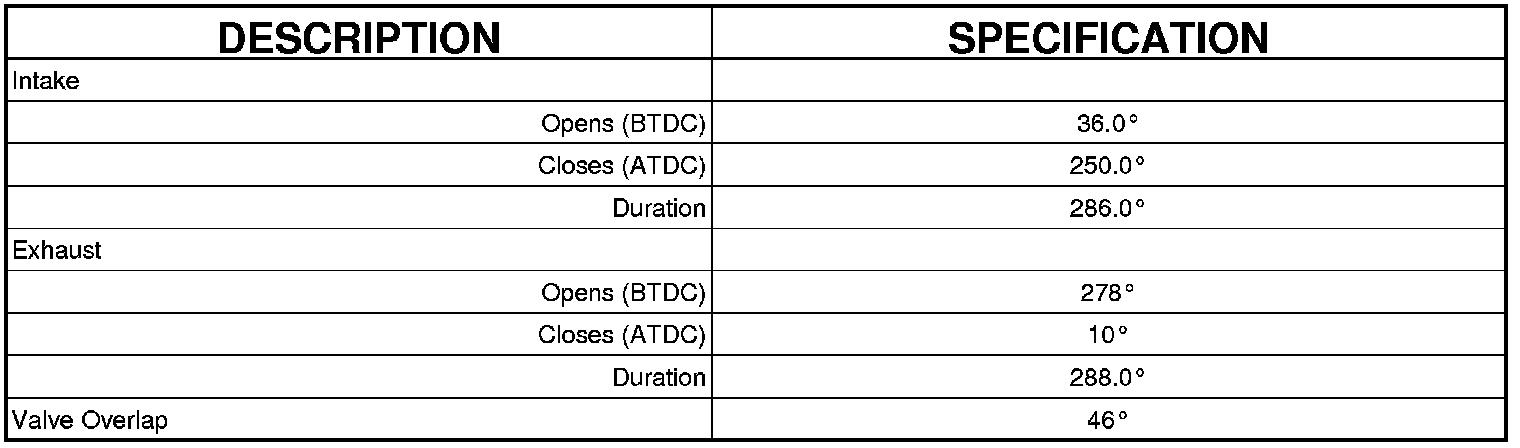

VALVE TIMING

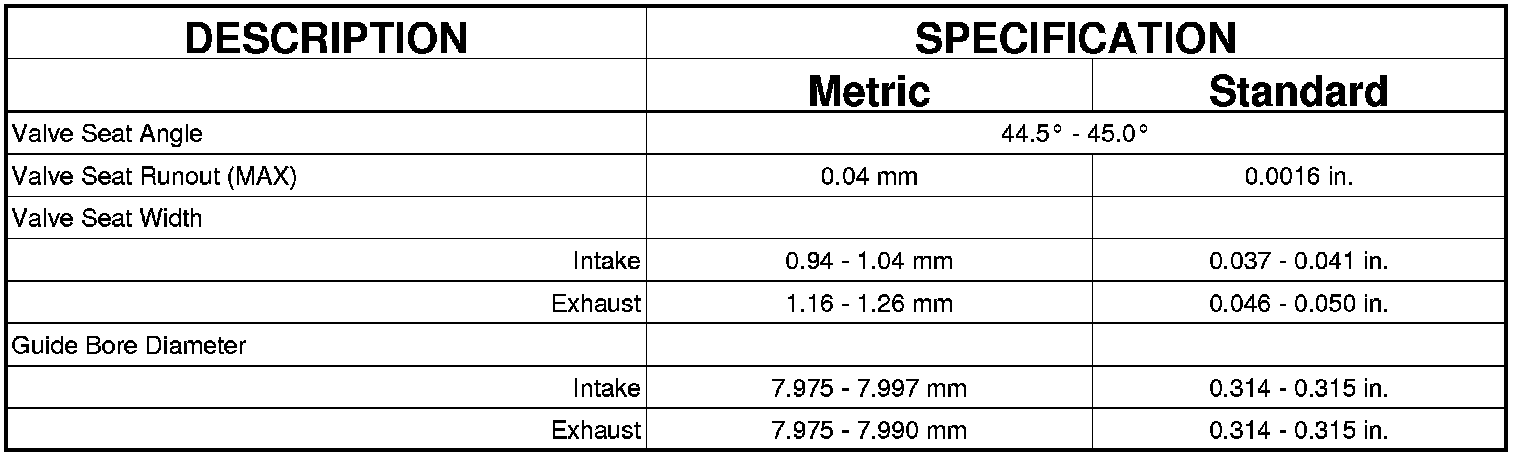

CYLINDER HEAD

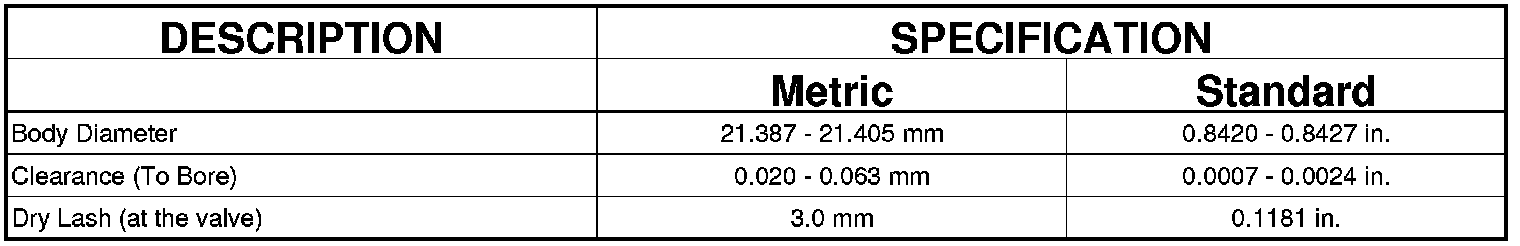

HYDRAULIC TAPPETS

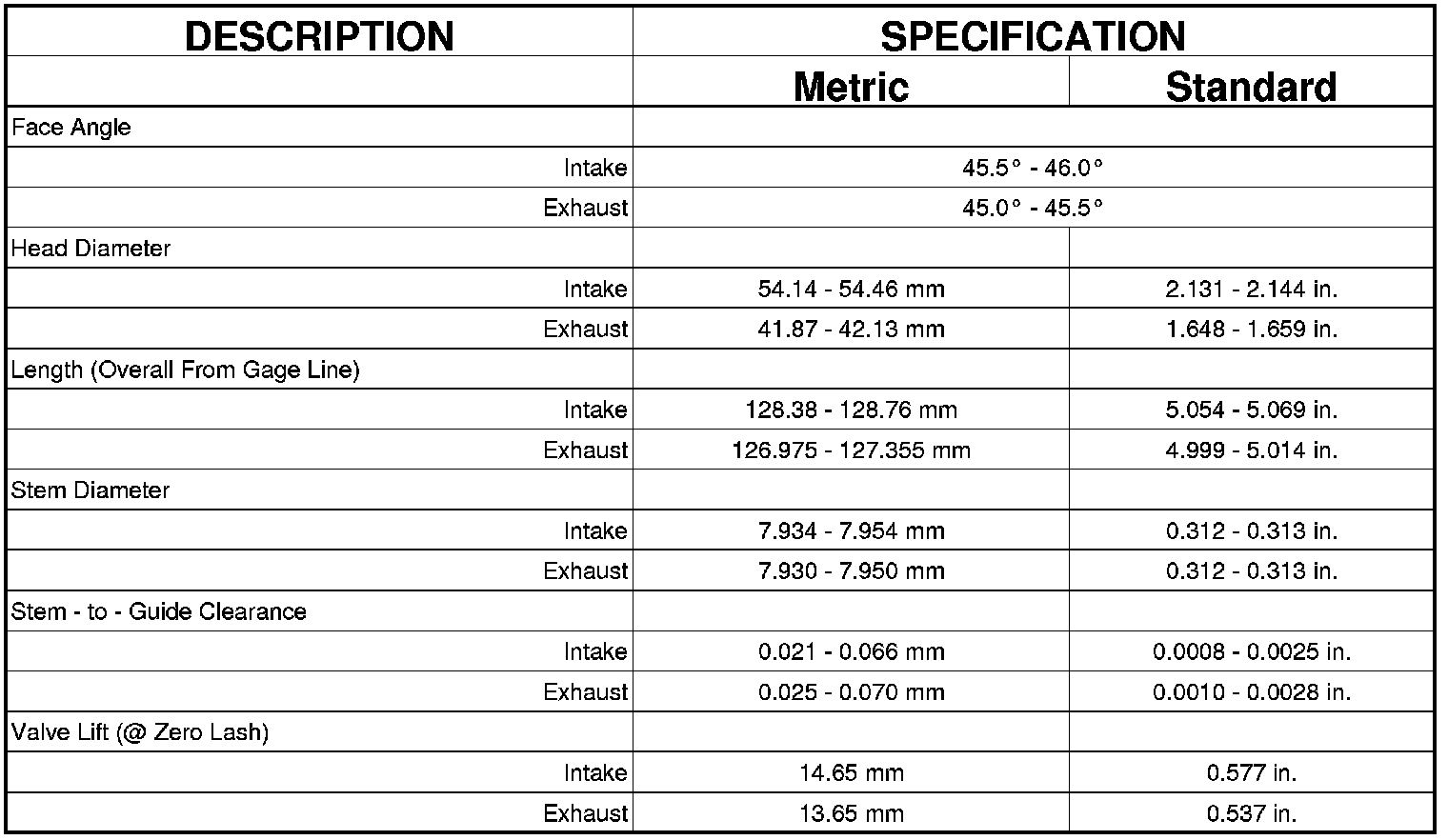

VALVES

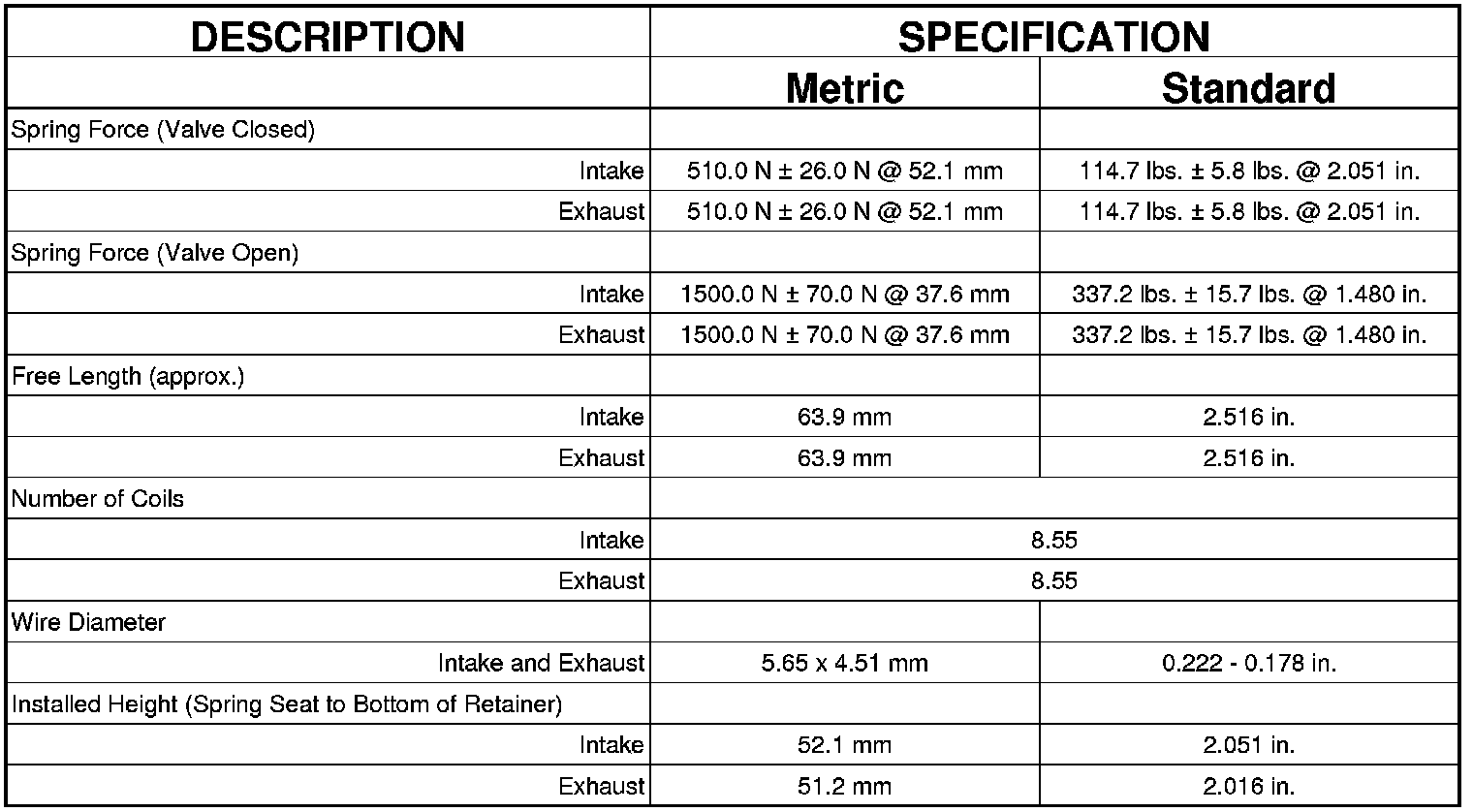

VALVE SPRING

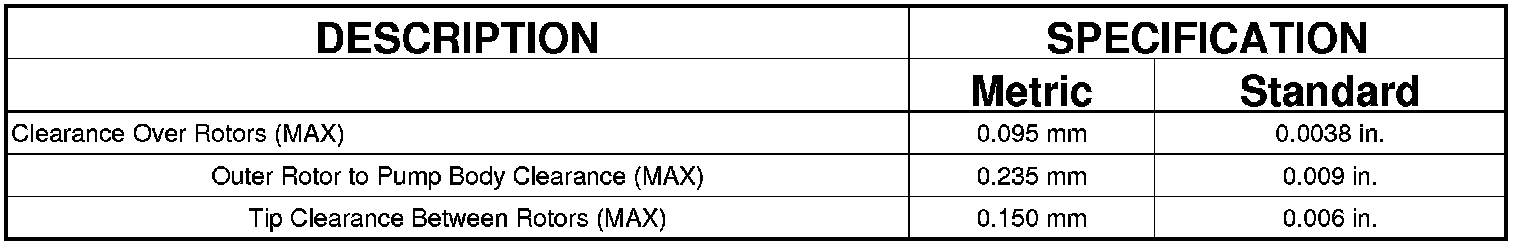

OIL PUMP

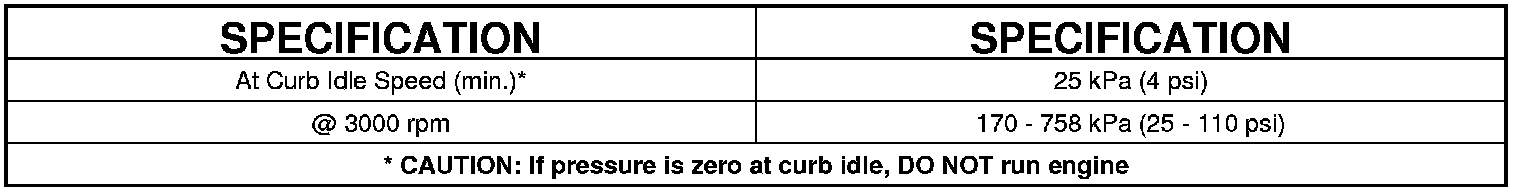

OIL PRESSURE
