Grand Cherokee 4WD SRT-8 V8-6.4L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Exhaust System
>>
Exhaust Manifold
Exhaust Manifold

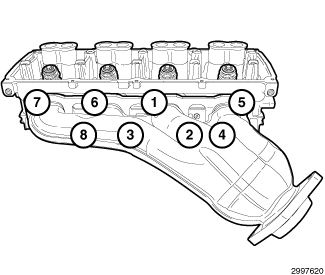

Exhaust Manifold
to Cylinder Head - Bolts
31 Nm (23 Ft. Lbs.)
NOTE:
Left side shown, right side similar.
