Intrusion Module Sensor - Description

DESCRIPTION

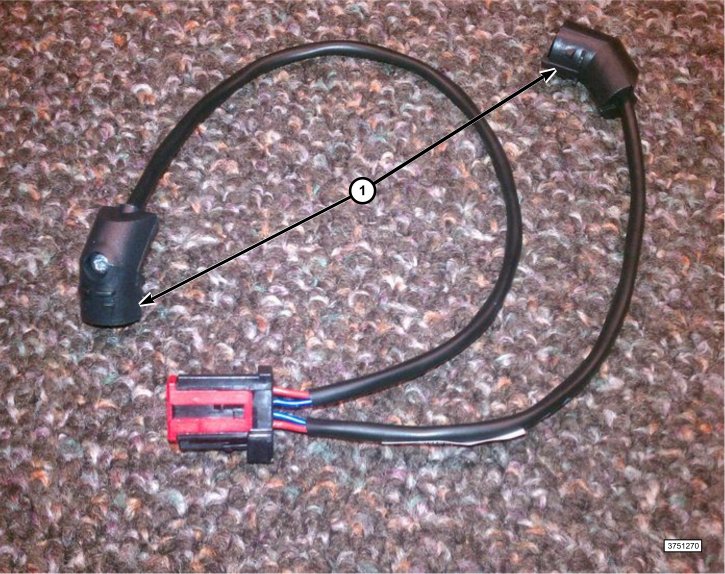

The intrusion module sensors are located in the front overhead console on each side of the Intrusion Transceiver Module (ITM).

The intrusion module sensors send ultrasonic signals into the vehicle cabin, if an object is moving in the interior the intrusion module senses this movement and sends the signal back to the ITM.

The intrusion module sensors cannot be adjusted or repaired in the event the sensors become ineffective or damaged the sensors must be replaced.
