Intrusion Module Sensor - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the front overhead console (1) Front Overhead Console - Removal.





3. Disconnect the motion sensor connector from the intrusion module (2).
4. Unclip the intrusion module from the overhead console and remove.

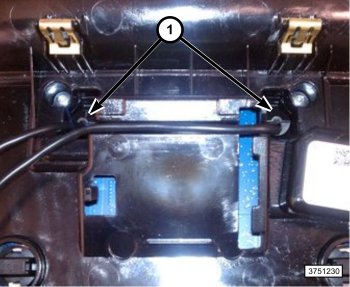

5. Using a suitable tool, remove both intrusion sensors (1) from the overhead console.
