Crankshaft Main Bearing

CRANKSHAFT MAIN BEARING






Install the main bearing cap with two inner main bearing cap bolts
Tighten 20 Nm (15 ft. lbs.) plus 90°







Install the windage tray with eight main bearing cap bolts
Tighten the bolts 21 Nm (16 ft. lbs.) plus 90°






Install the eight main bearing tie bolts.
Tighten the bolts 28 Nm (21 ft. lbs.)






CRANKSHAFT MAIN BEARING JOURNALS

Bearing Clearance 0.024 - 0.050 mm (0.0009 - 0.0020 in.)
Bearing Clearance (Max.) 0.050 mm (0.0020 in.)

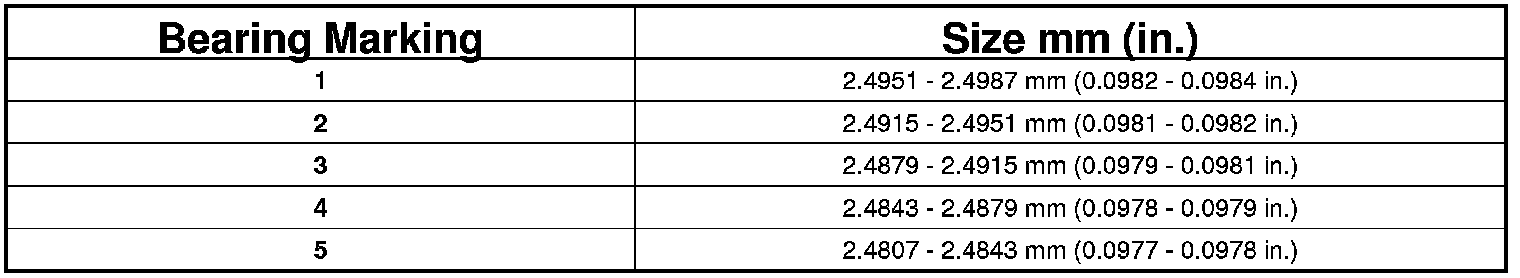

MAIN BEARING SIZE CODES
