Instrument Panel Bin - Installation

INSTALLATION

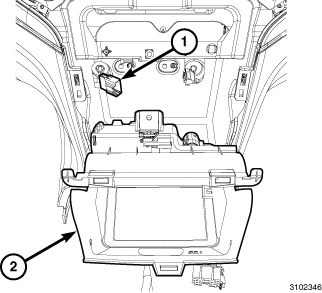

1. Connect the electrical connector (1), if equipped.
2. Install the storage bin (2) back into the center stack.





3. Connect the electrical connectors (2).
4. Install the upper screw (1).





5. Install the lower screws (1).





6. Install the passive entry antenna (1), if equipped, and install the screws (2).
7. Install the shifter bezel. Shifter Bezel - Installation
8. Install the center bezel. Instrument Panel Center Bezel - Installation
