Front Axle - 195FIA

FLUID DRAIN AND FILL





1. Drive the vehicle until the differential lubricant is at the normal operating temperature.
2. With vehicle in neutral, position and raise vehicle on hoist.

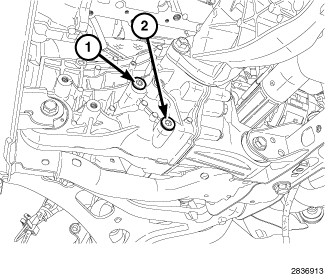

3. Remove rear axle drain plug (2) and drain lubricant completely from the axle.
4. Install drain plug and tighten to 50 Nm (37 ft lbs).
5. Remove fill plug (1) and fill rear axle to the bottom of the fill hole. .
6. Install fill plug and tighten to 50 Nm (37 ft lbs).
