Home >> Jeep >> 2012 >> Grand Cherokee 4WD V8-5.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations

Fuse: Locations

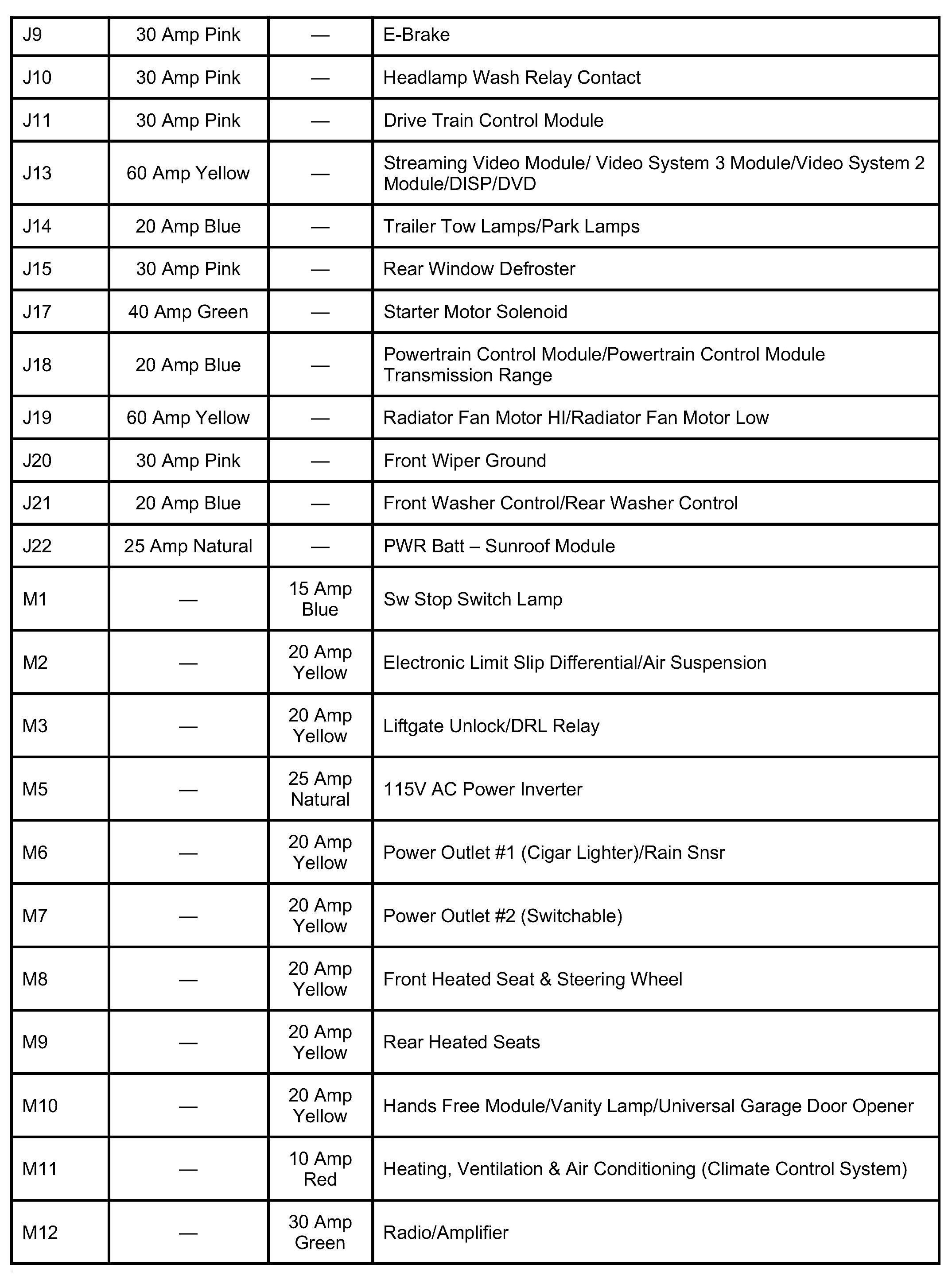

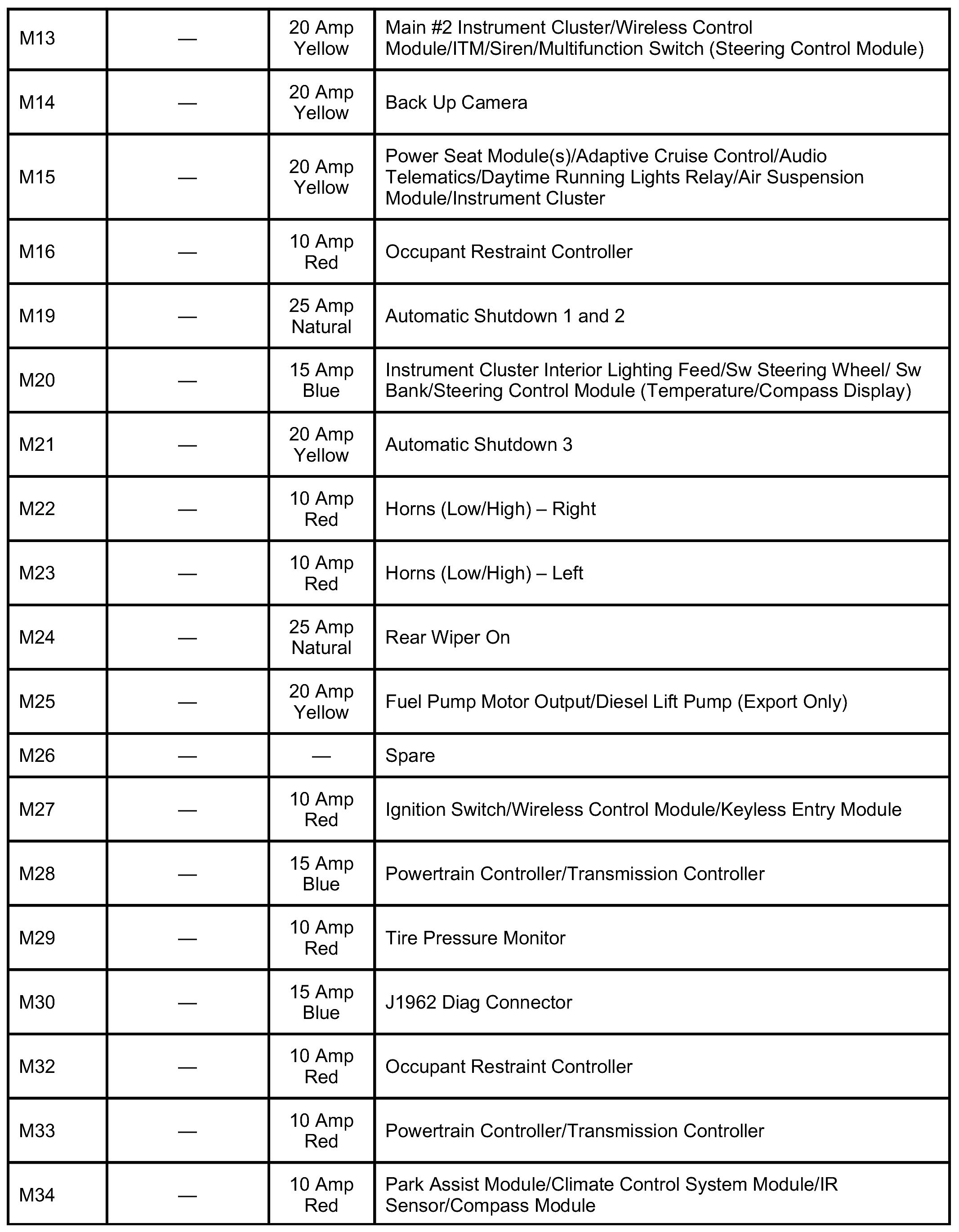

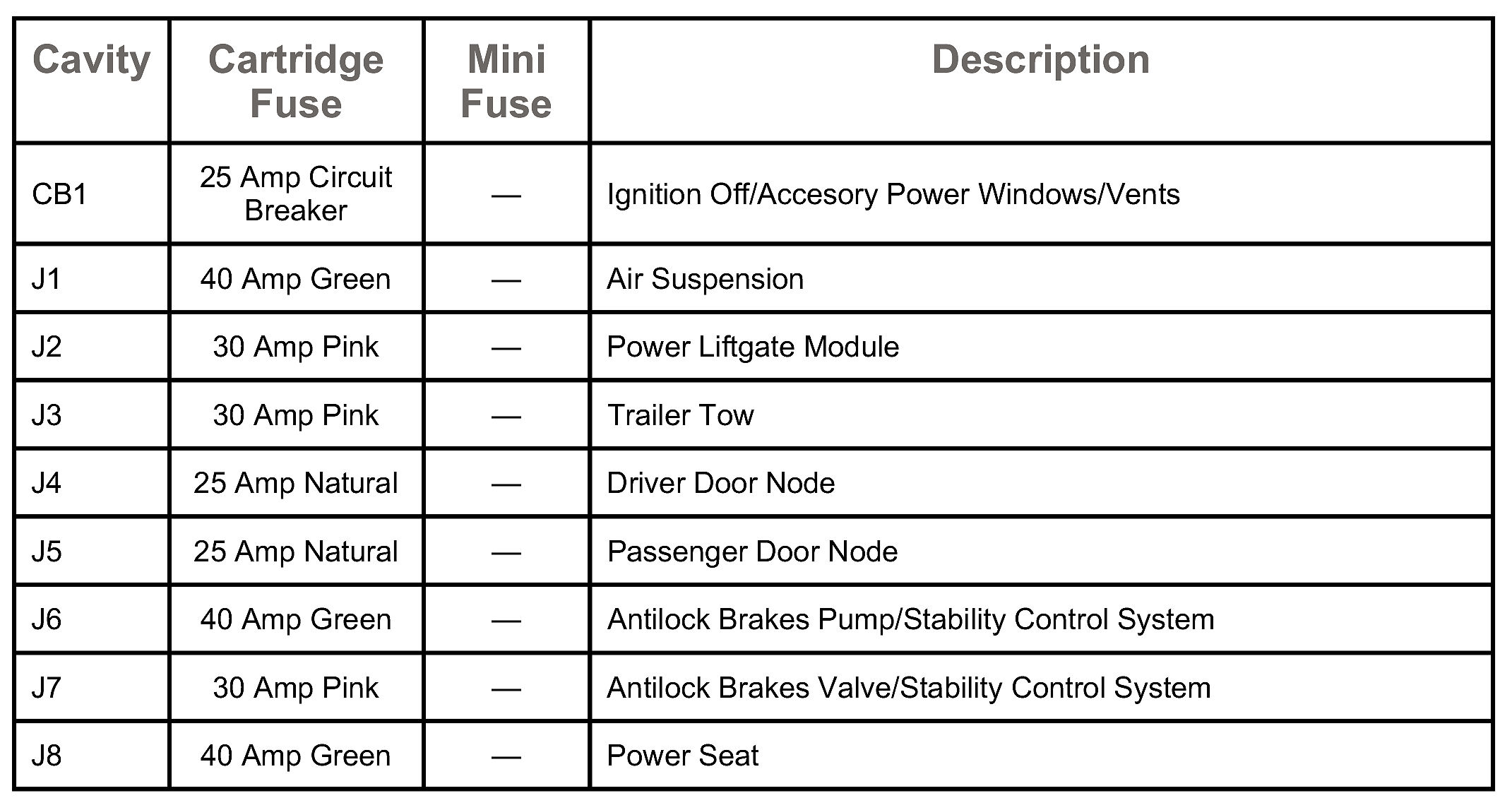

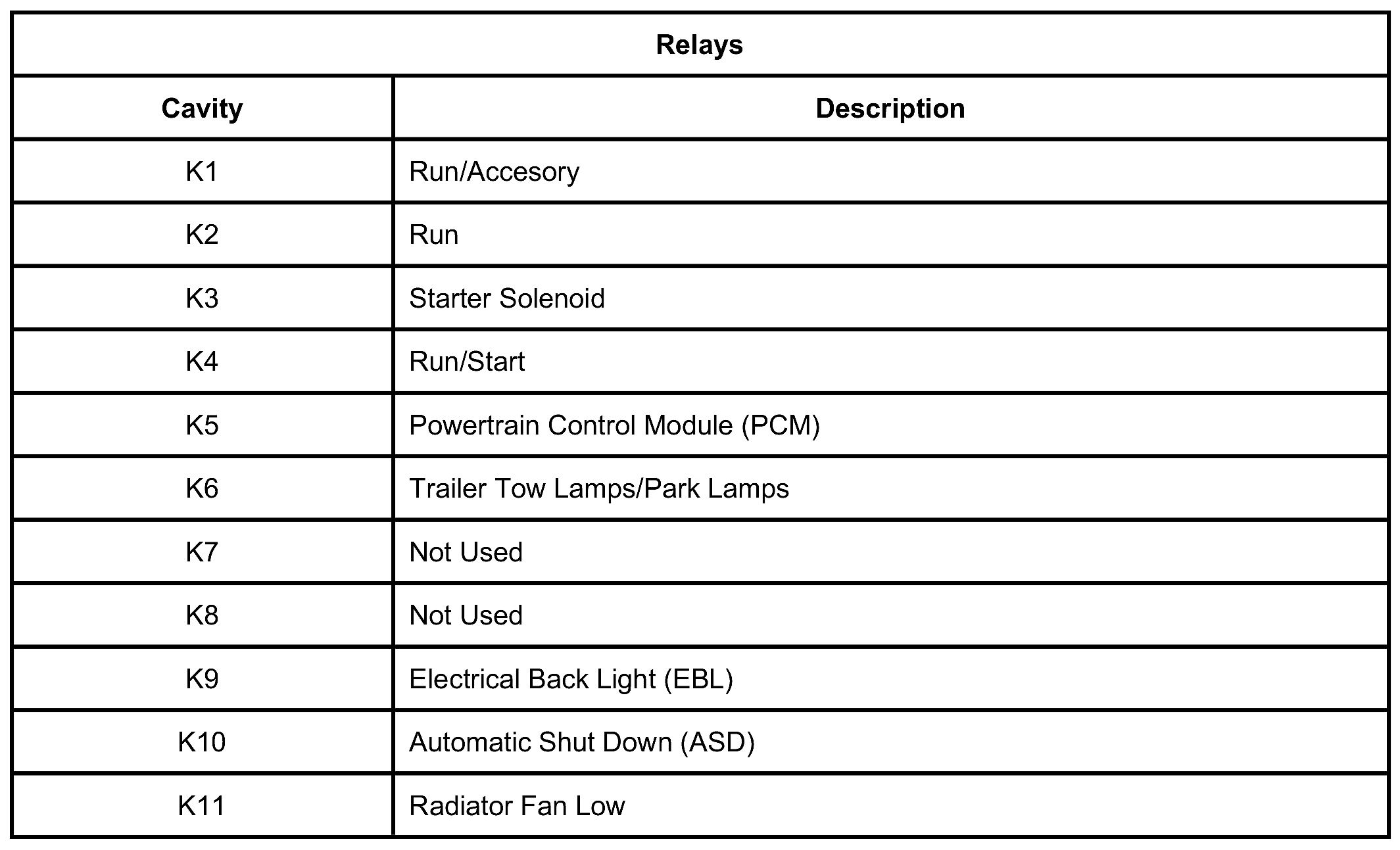

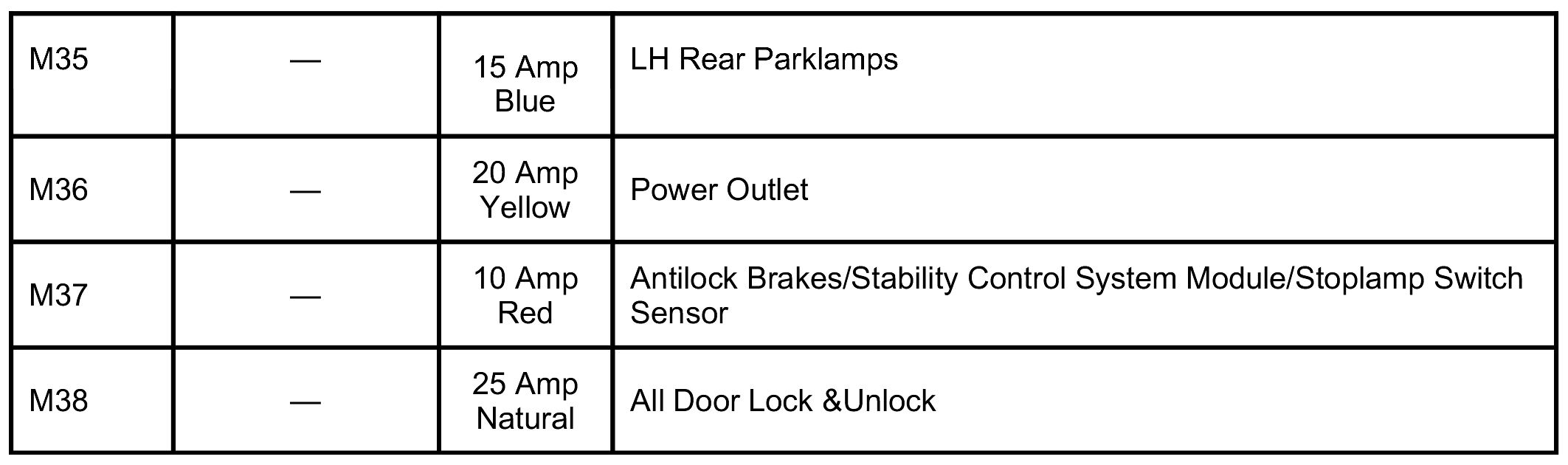

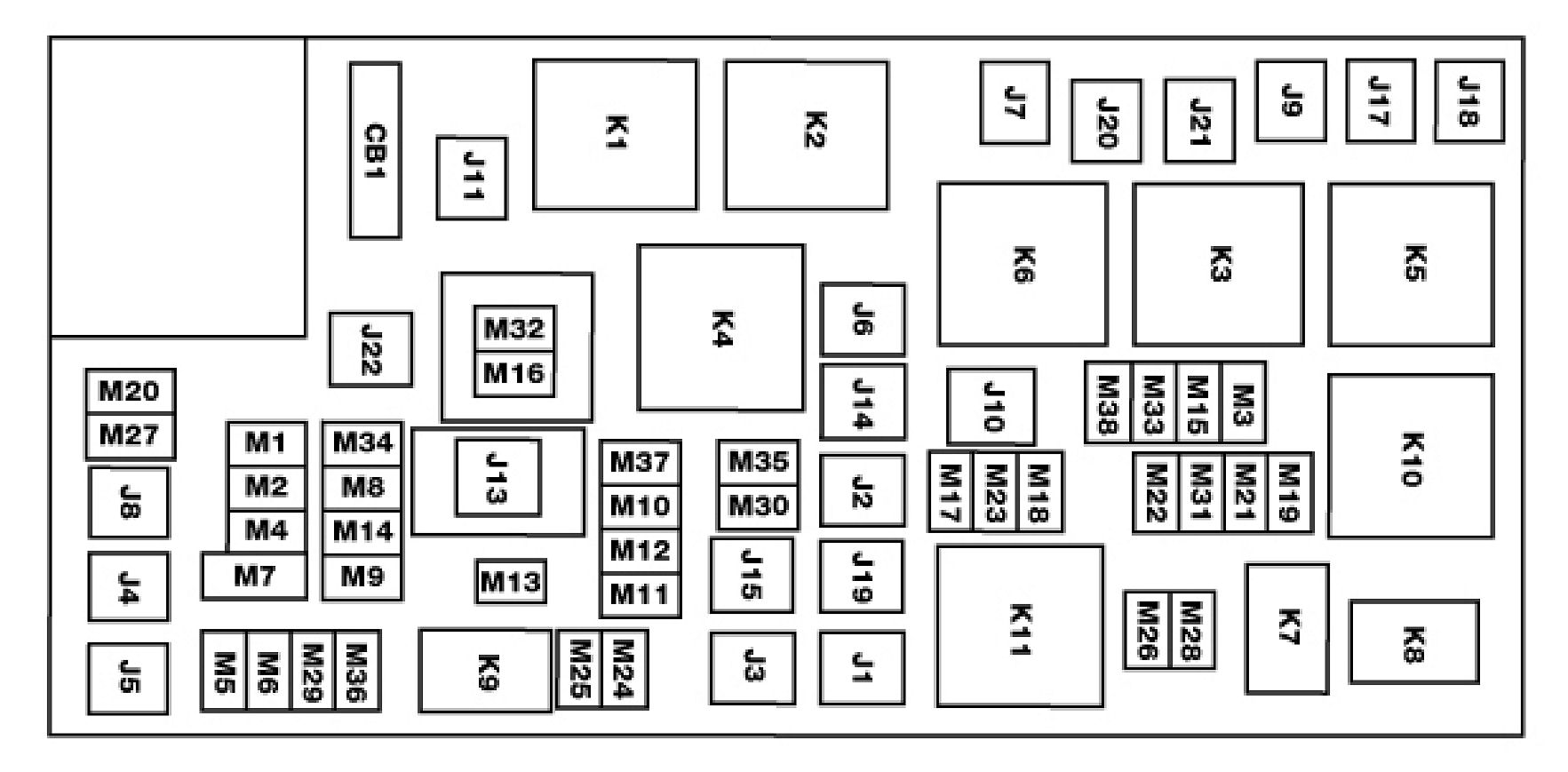

Totally Integrated Power Module
