Wheel Alignment






WHEEL ALIGNMENT

NOTE: Specifications are in degrees.



LHD WITH STANDARD SUSPENSION

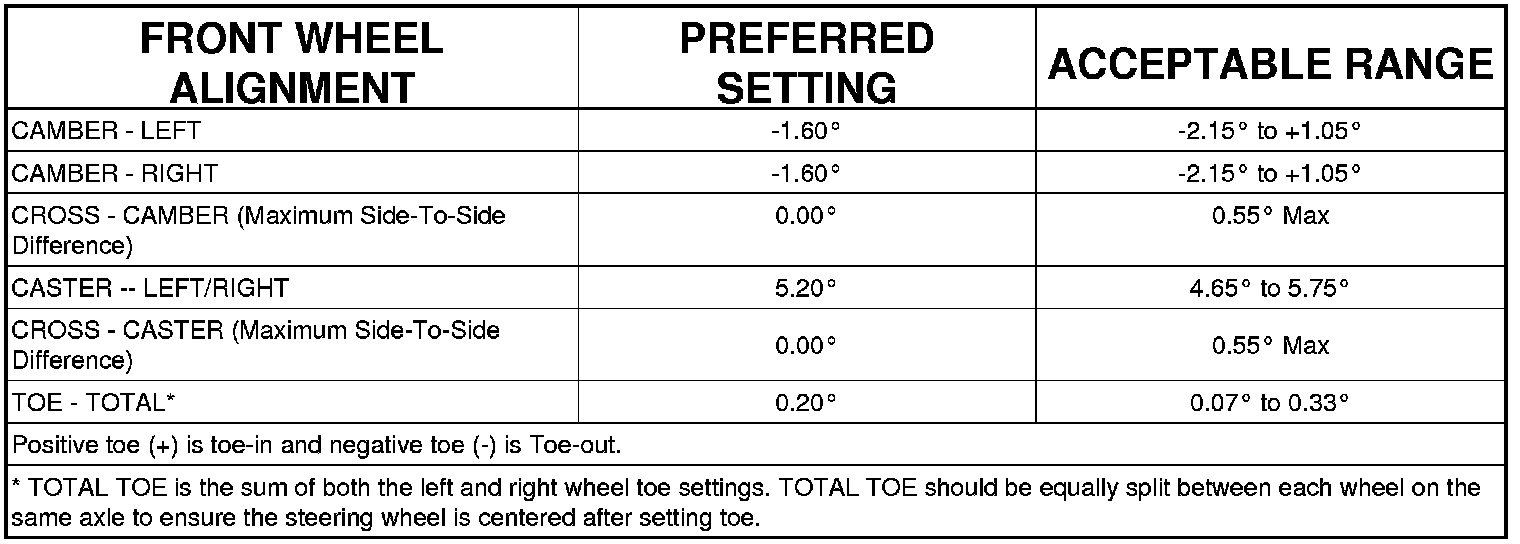

FRONT - LHD WITH STANDARD SUSPENSION

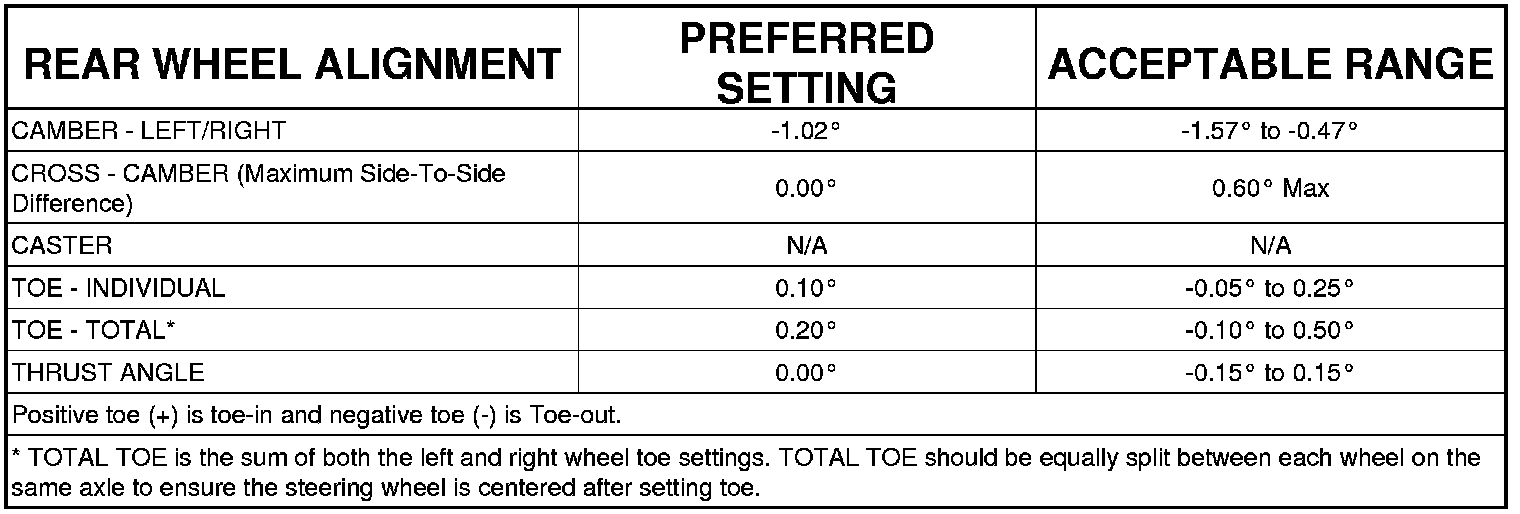

REAR - LHD WITH STANDARD SUSPENSION






LHD WITH SPORT SUSPENSION

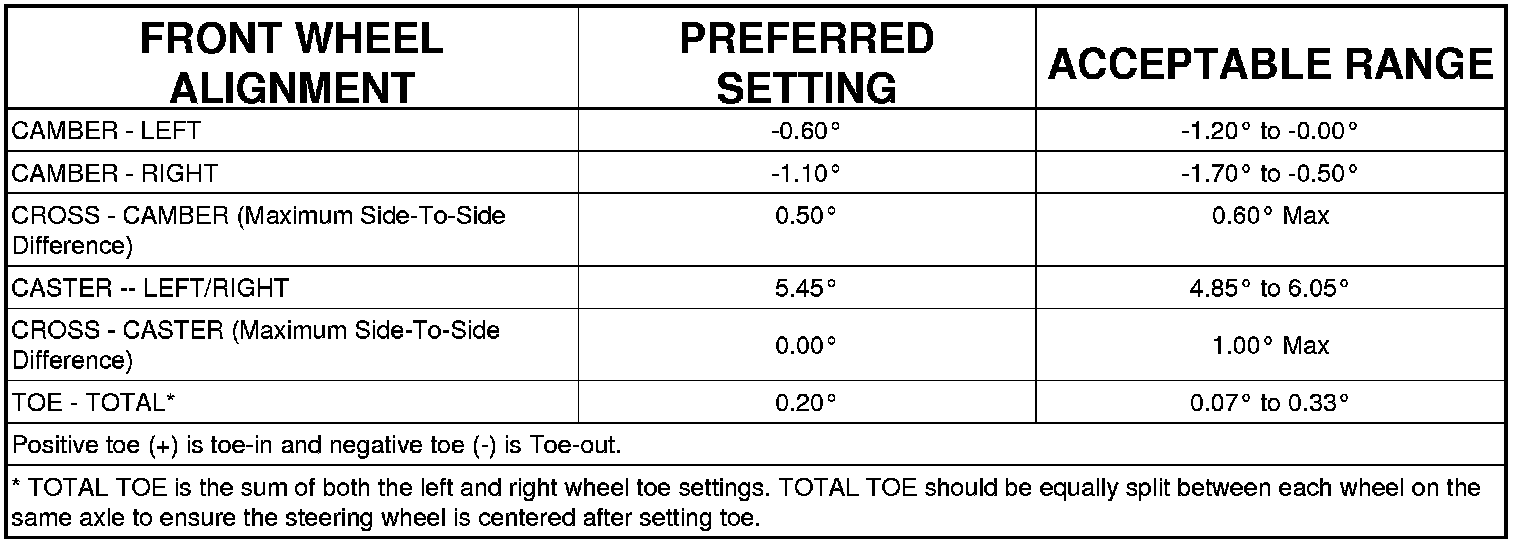

FRONT - LHD WITH SPORT SUSPENSION






REAR - LHD WITH SPORT SUSPENSION






LHD - WITH AIR SUSPENSION

NOTE: Vehicles equipped with Air Suspension must be in the manually selected "Sport" position (Aero mode) of the terrain select switch when checking vehicle ride height or alignment.

FRONT - LHD WITH AIR SUSPENSION






REAR - LHD WITH AIR SUSPENSION






RHD - WITH STANDARD SUSPENSION

FRONT - RHD WITH STANDARD SUSPENSION






REAR - RHD WITH STANDARD SUSPENSION






RHD - WITH AIR SUSPENSION

NOTE: Vehicles equipped with Air Suspension must be in the manually selected "Sport" position (Aero mode) of the terrain select switch when checking vehicle ride height or alignment.

FRONT - RHD WITH AIR SUSPENSION






REAR - RHD WITH AIR SUSPENSION






SRT8

FRONT - SRT8






REAR - SRT8
