Front Lower Control Arm Pivot Bushing - Removal

LOWER CONTROL ARM PIVOT BUSHING

Special Tools:










1. Remove the lower control arm Front Lower Control Arm - Removal.
2. Secure the control arm in a vise.

NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.

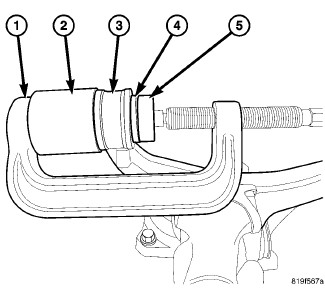

3. Press the bushing (4) out using special tools (Press) (1), (Receiver) (2) and (Driver) (5).
