Rear

REAR SOLENOID 1/2

1. Disconnect negative battery cable.
2. Remove engine cover.

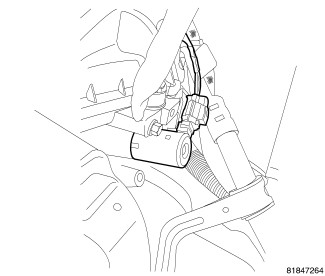

3. Disconnect variable valve timing solenoid electrical connector.
4. Remove variable valve timing solenoid mounting bolt.

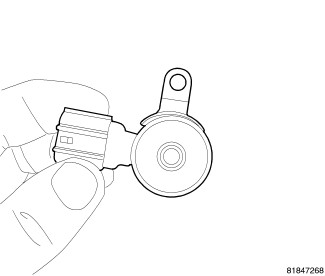

5. Pull solenoid straight out of cylinder head.
