Fixed Displacement A/C Compressor

COMPRESSOR, A/C - FIXED DISPLACEMENT

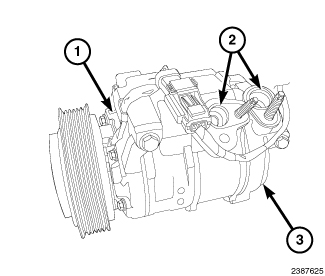

2.2L Diesel models are equipped with a clutch operated Denso 10SRE18 A/C compressor (1) with a fixed displacement of 180 cubic centimeters (11 cubic inches). This A/C compressor is a reciprocating, swash plate-type compressor with five double-acting pistons. The A/C compressor has the suction and discharge ports (2) and the high pressure relief valve (3) located near the rear of the compressor.

The A/C compressor is secured to the engine with three bolts.

A label identifying the use of R-134a refrigerant and ND-8 PAG oil is located on the A/C compressor.
