Liftgate Backlite - Removal

REMOVAL





1. Before proceeding with the following repair procedure, review all warnings and cautions. Service Precautions
2. Remove the spoiler (1), Liftgate Spoiler - Removal.





3. Remove the liftgate handle (1),Exterior Handle - Removal.





4. Remove the rear wiper arm (3), . Service and Repair










NOTE: Windshield removal shown, liftgate glass similar.

5. Disconnect the heated liftgate glass electrical connectors, if equipped.

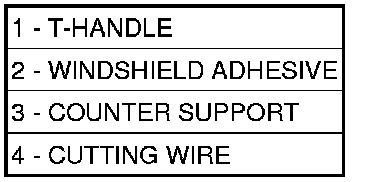

6. Using a windshield cut-out wire (4) or other suitable tool, separate the adhesive (2).
7. Carefully remove liftgate glass.
