Crossmember - Removal

REMOVAL

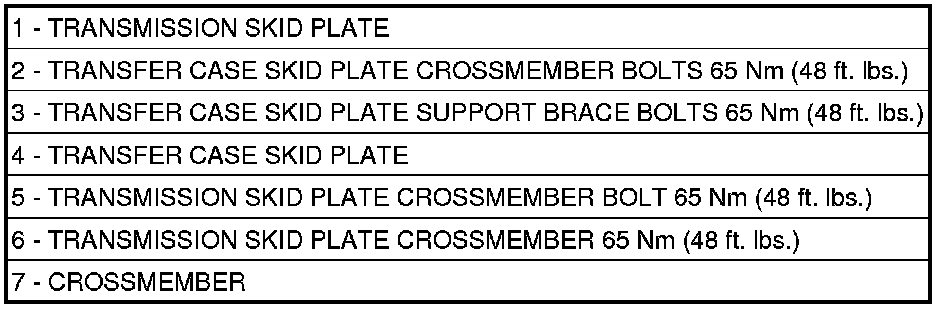

Figure 1 - SKID PLATES





1. Remove the transmission skid plate (1). Skid Plate - Installation
2. Remove the transfer case skid plate (4). Skid Plate - Removal





3. Remove the left side bolts (1).





4. Remove the fuel tank skid plate bolts (2).
5. Remove the right side bolts (1) and remove the crossmember (3).
