Roll Bar: Description and Operation
DESCRIPTION

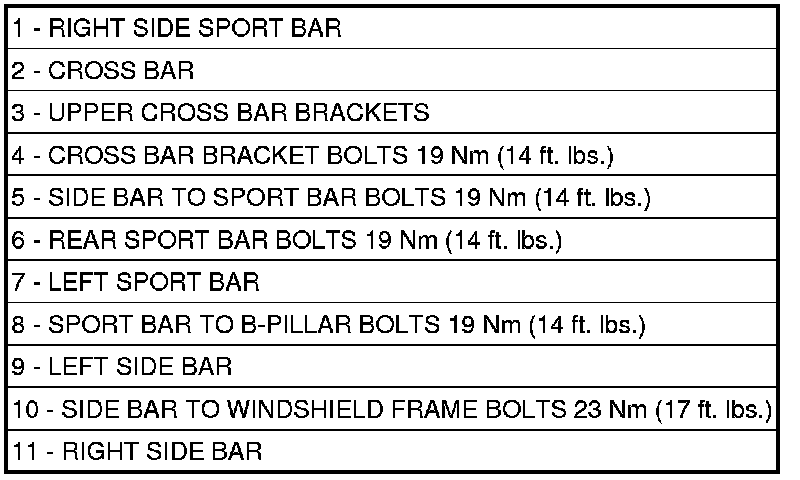

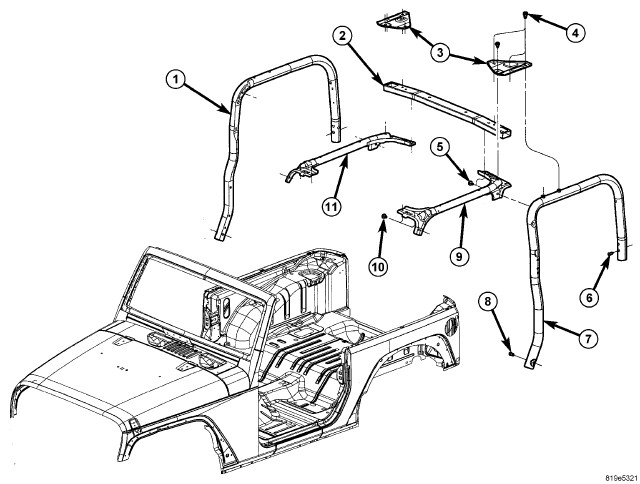

Figure 1 - 2 DOOR EXPLODED VIEW

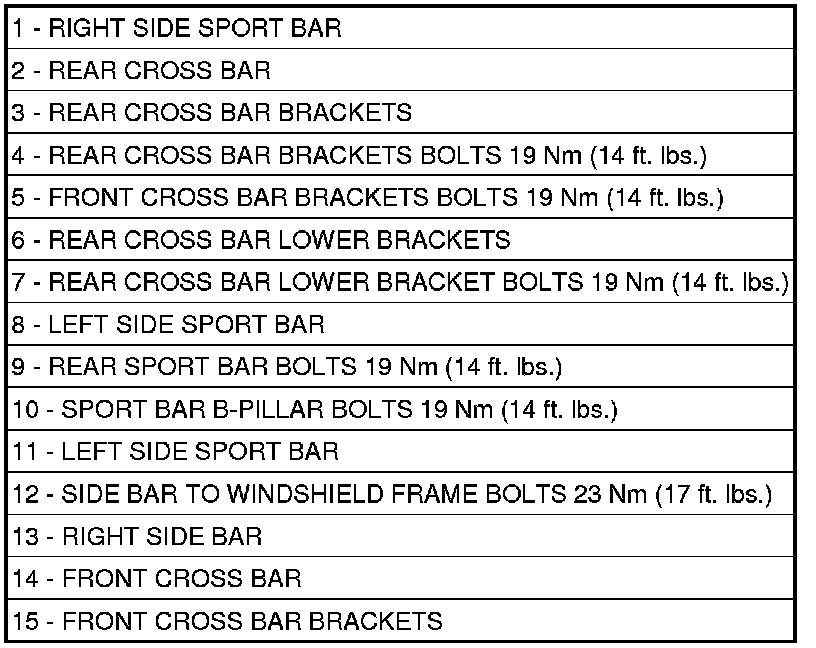

Figure 2 - 4 DOOR EXPLODED VIEW
