Dynamics Sensor - Installation
INSTALLATION

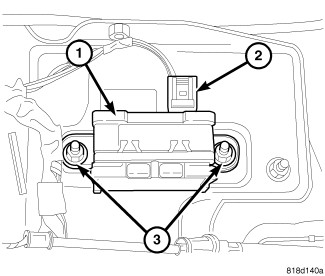

1. Install the sensor (1) to the vehicle.
2. Install the two mounting nuts (3) and torque to 11 Nm (8 ft. lb.).
3. Reconnect the electrical connector (2) to the sensor (1).
4. Install the center console.
INSTALLATION
1. Install the sensor (1) to the vehicle.
2. Install the two mounting nuts (3) and torque to 11 Nm (8 ft. lb.).
3. Reconnect the electrical connector (2) to the sensor (1).
4. Install the center console.
