INSTALLATION

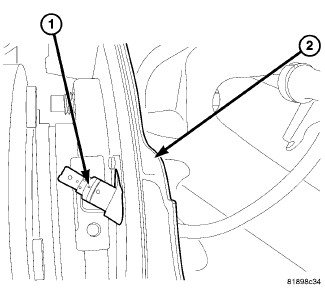

1. Install the sensor (1) through the hole in the brake shield (2).

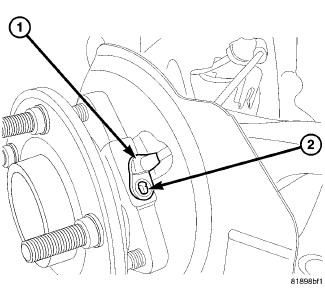

2. Install the sensor (1) in the hub AND bearing and tighten sensor attaching bolt (2) to 4-6 Nm (34-50 in. lbs.).





3. Install the disc brake rotor (3).
4. Install the disc brake caliper (1) and adaptor (2).

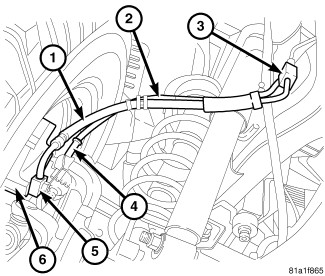

5. Route the sensor wire (2) and secure to the brake hose (1).
6. Connect sensor wire to harness.
7. Install the tire AND wheel assembly.
8. Remove the support and lower the vehicle.
