Air Outlet - Installation

INSTALLATION

NOTE: If the foam seal on the air outlet is deformed or damaged, the seal must be replaced.

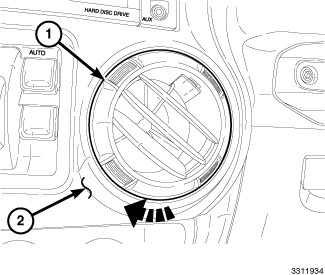

NOTE: Center-right outlet shown. Other outlets similar.





1. Install the air outlet (1) into the instrument panel (2).
2. Rotate the air outlet clockwise until fully engaged to the instrument panel.
