Front Bumper - Installation

Bumper, Front

INSTALLATION

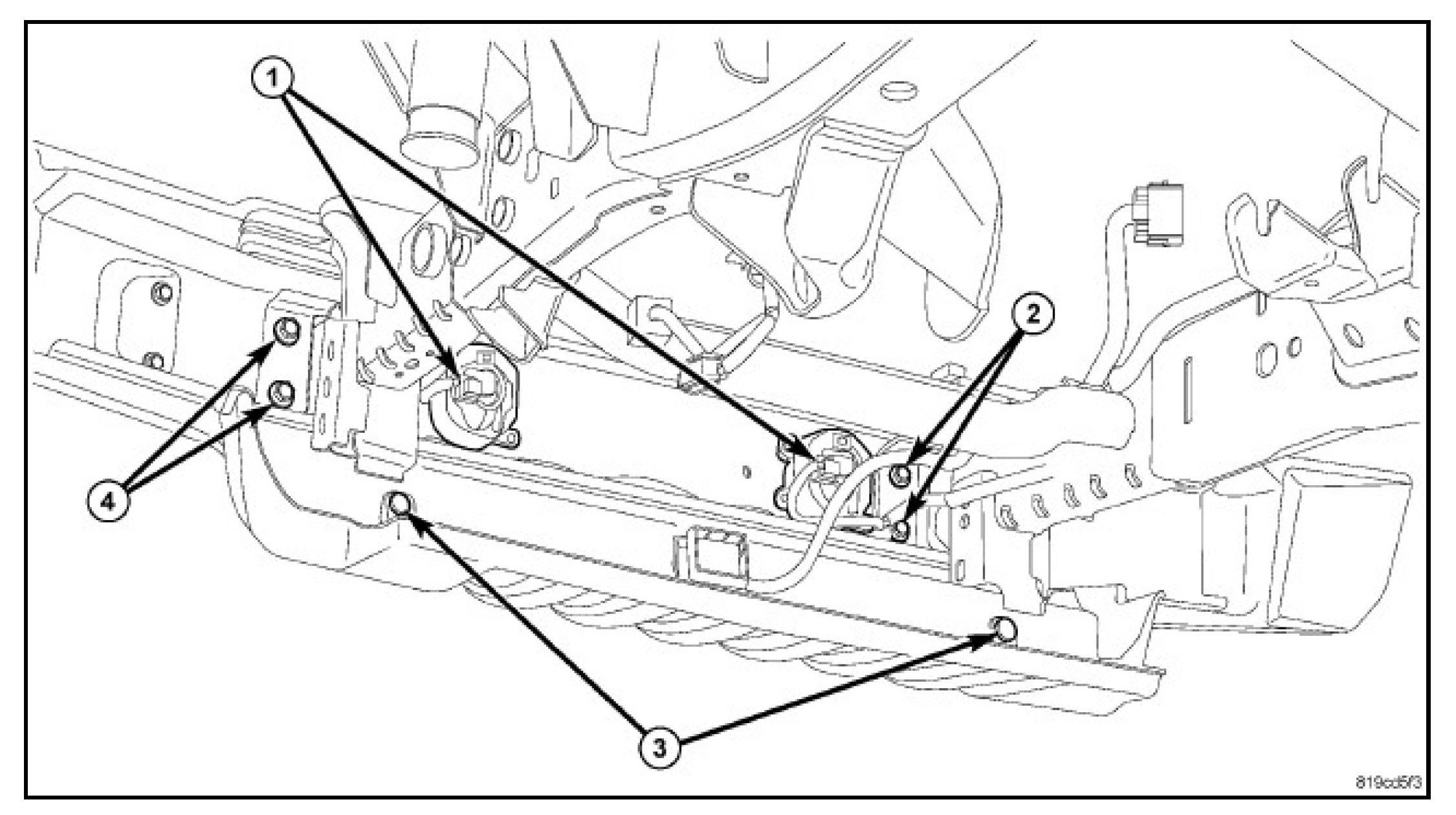

1. Install the bumper and install the inner (2) and outer support bolts (4).
2. Tighten the support bolts to 90 N.m (66.5 ft. lbs.).
3. Connect the electrical connectors (1).
4. Install the splash shield and install the push pin fastener (3).

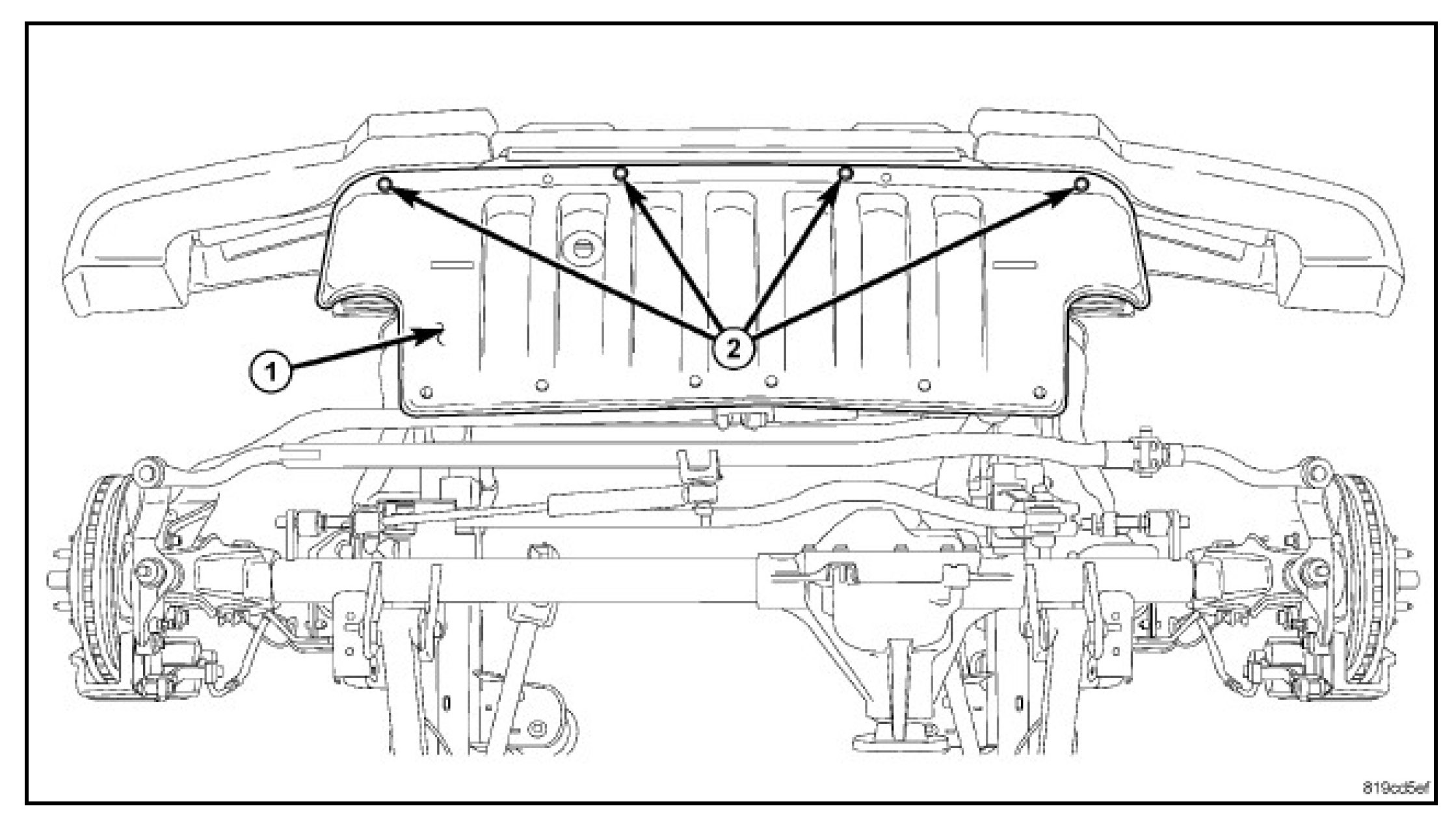

5. Position the splash shield (1) onto the bumper and install the push pin fasteners (2).
