Windows/Glass - Windshield Appears Chipped At The Bottom Edge
NUMBER: 23-032-12GROUP: Body
DATE: October 17, 2012
THIS SERVICE BULLETIN IS ALSO BEING RELEASED AS RAPID RESPONSE
TRANSMITTAL (RRT) 12-061. ALL APPLICABLE UN-SOLD RRT VIN's HAVE BEEN
LOADED. TO VERIFY THAT THIS RRT SERVICE ACTION IS APPLICABLE TO THE
UN-SOLD VEHICLE, USE VIP OR PERFORM A VIN SEARCH IN TECHCONNECT. FOR
VEHICLES NOT INCLUDED IN THE RRT VIN LIST, APPLICATION OF THIS SERVICE
BULLETIN TO SOLD UNITS IS BASED UPON THE CUSTOMER EXPERIENCING THE
SYMPTOM/CONDITIONS. ALL REPAIRS ARE REIMBURSABLE WITHIN THE
PROVISIONS OF WARRANTY.
SUBJECT:
Front Windshield Appears Chipped At The Bottom Edge
OVERVIEW:
This bulletin involves inspecting and if necessary replacing the windshield.
MODELS:
2013 (JK) Wrangler
NOTE:
This applies to vehicles built before August 12, 2012 (MDH0812XX).
SYMPTOM/CONDITION:
Windshield appears chipped at the bottom edge.
DIAGNOSIS:
If a customers VIN is listed in VIP or your RRT VIN list, perform the repair. For all other customers that describe the symptom/condition, perform the Repair Procedure.

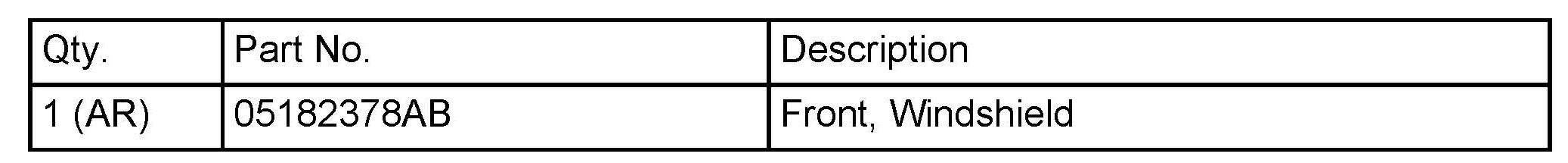

PARTS REQUIRED:
REPAIR PROCEDURE:
1. Inspect the front windshield at the bottom edge as shown in (Fig. 1). Did windshield appear chipped?
a. Yes >>> Proceed to Step # 2.
b. No >>> Return the vehicle to the customer or dealer inventory.
NOTE:
The windshield is not chipped and only appears to be, due to vinyl sheet being too long between the two pieces of glass. This can occur anywhere along the bottom edge on the front windshield.
2. Remove and replace the front windshield. Refer to the detailed service procedures available in: DealerConnect > TechCONNECT under: Service Info > 23-Body > Stationary Glass> Removal/Installation.
POLICY:
Reimbursable within the provisions of the warranty.

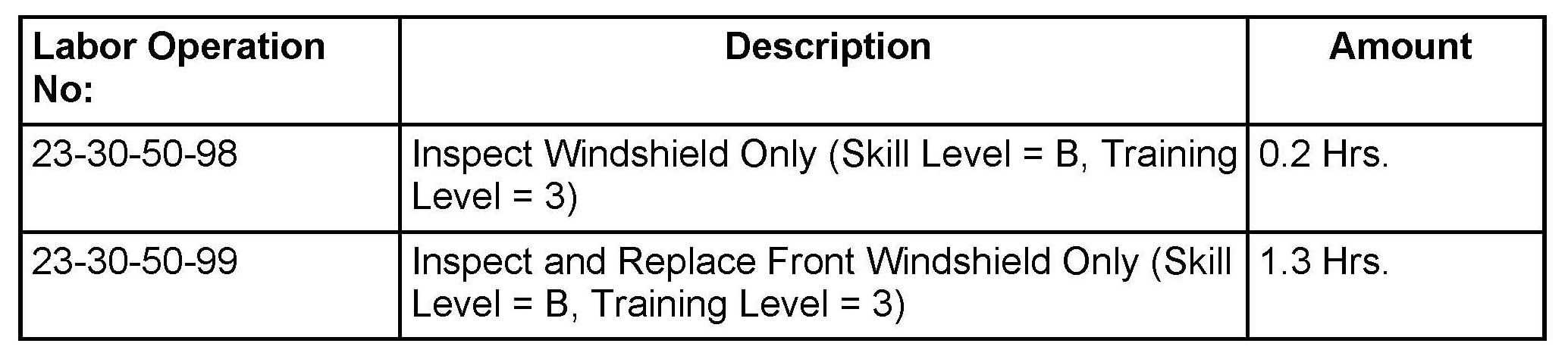

TIME ALLOWANCE:

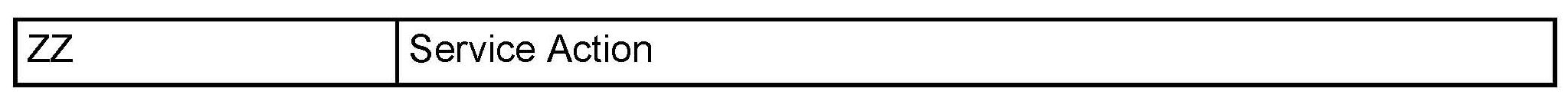

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
