Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia
>>
1994
>>
Sephia Sedan L4-1.6L SOHC 16V
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Control Module, A/T
>>

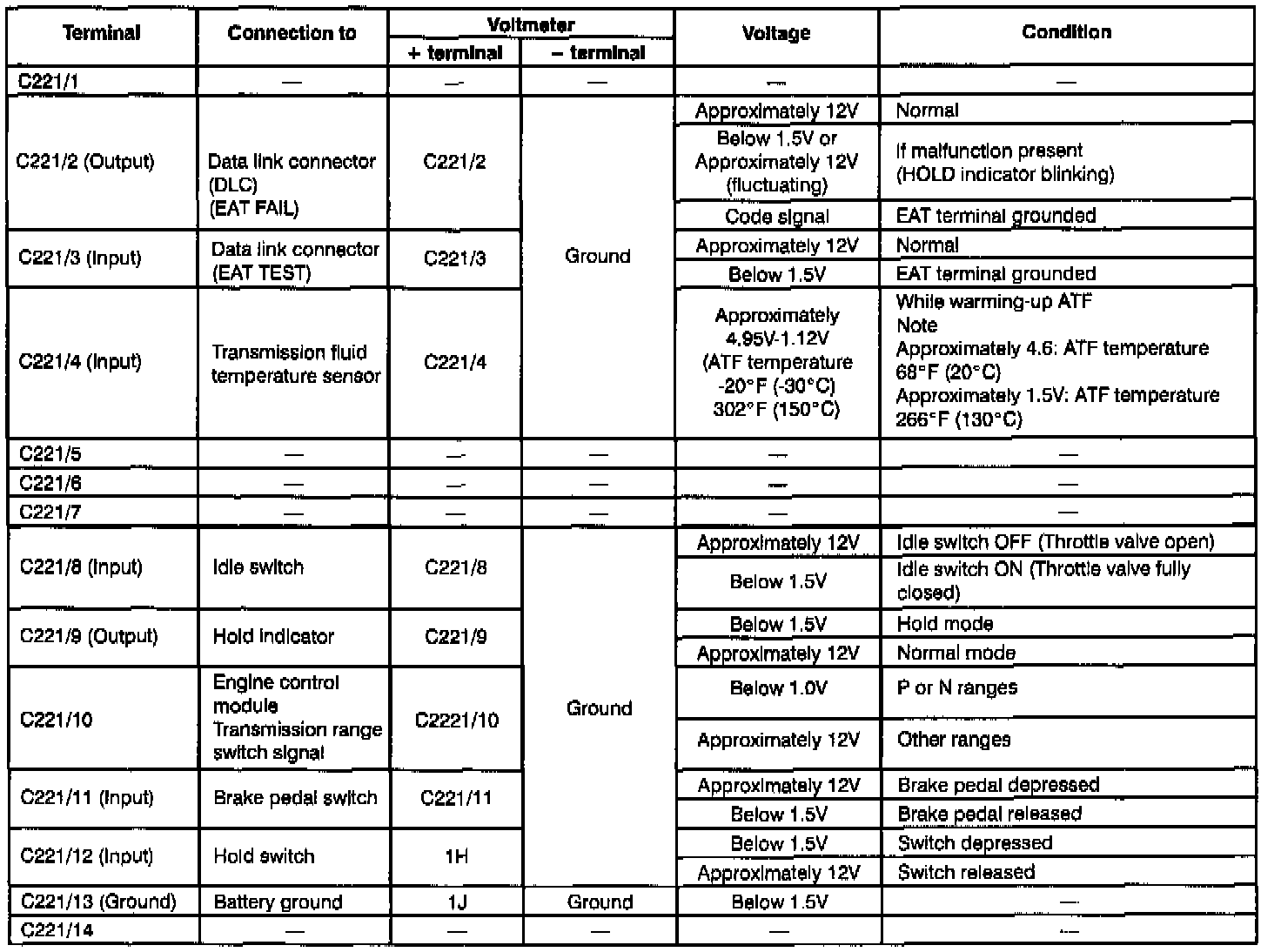

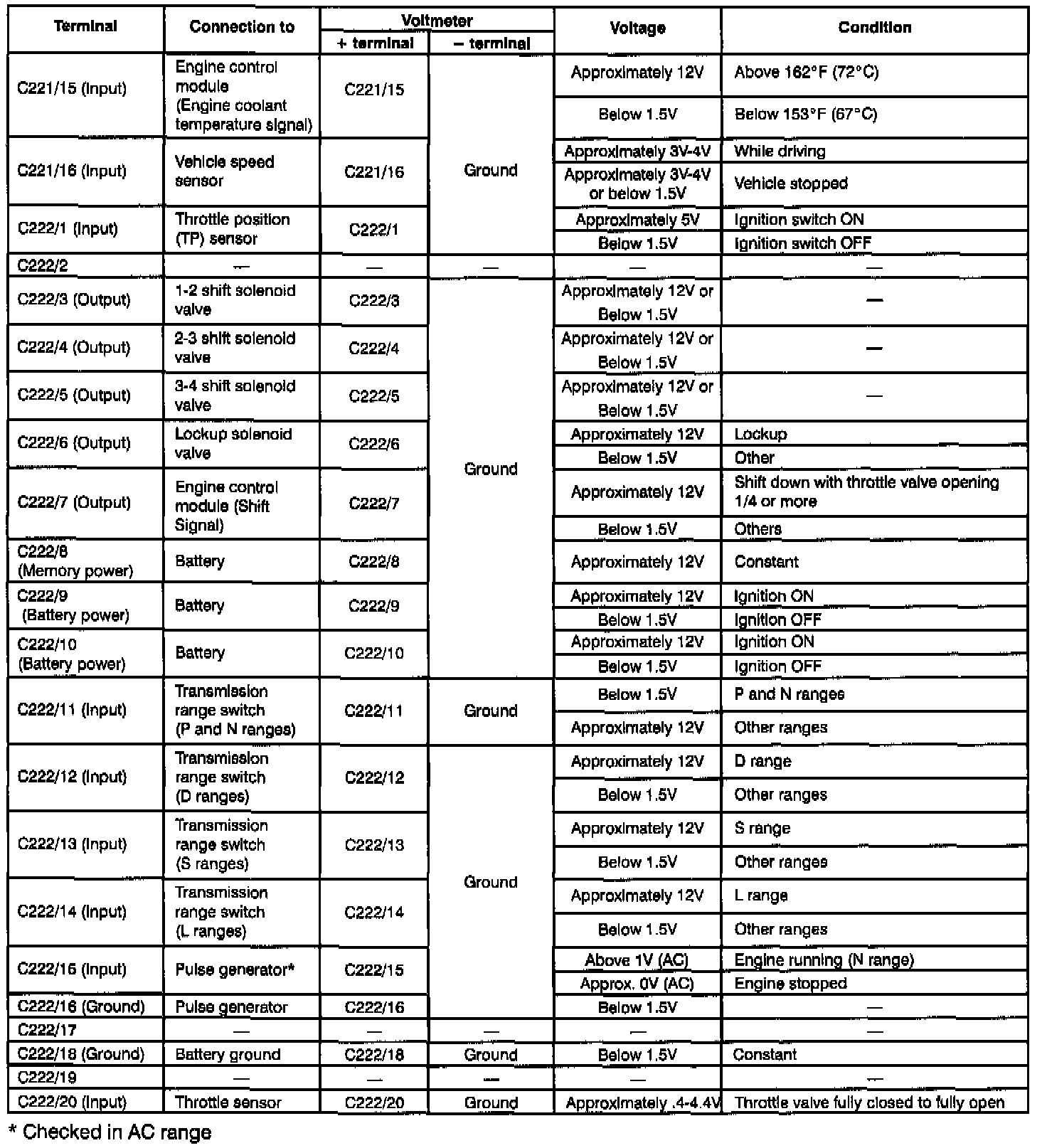

Terminal Voltage Charts
Terminal Voltage Charts
Chart:
Chart:
