Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia
>>
1995
>>
Sephia Sedan L4-1.6L DOHC 16V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Pin Information
>>
C248
>>

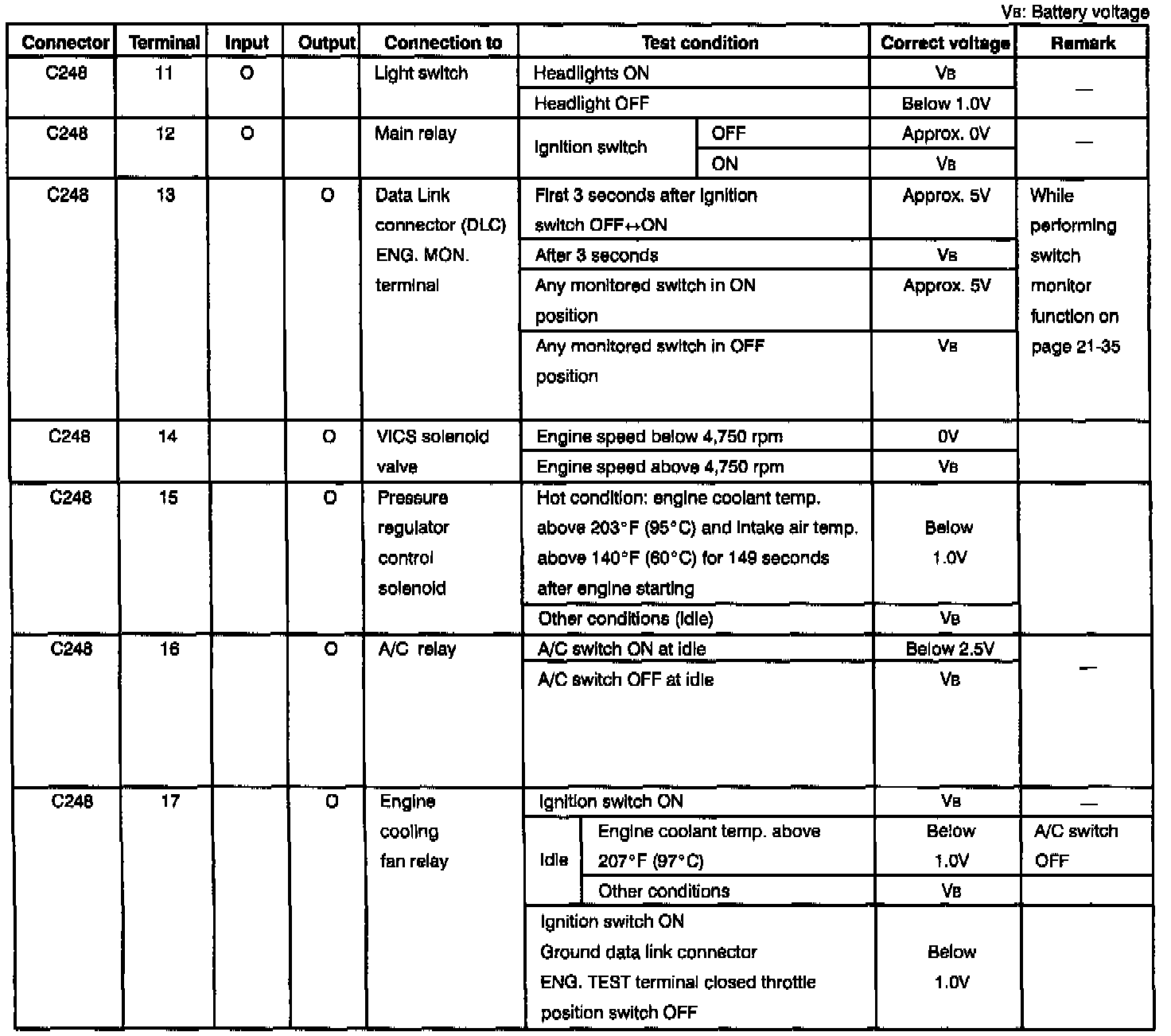

Pins 11-17
Pins 11-17
Description:
