Ignition Key Light Does Not Operate

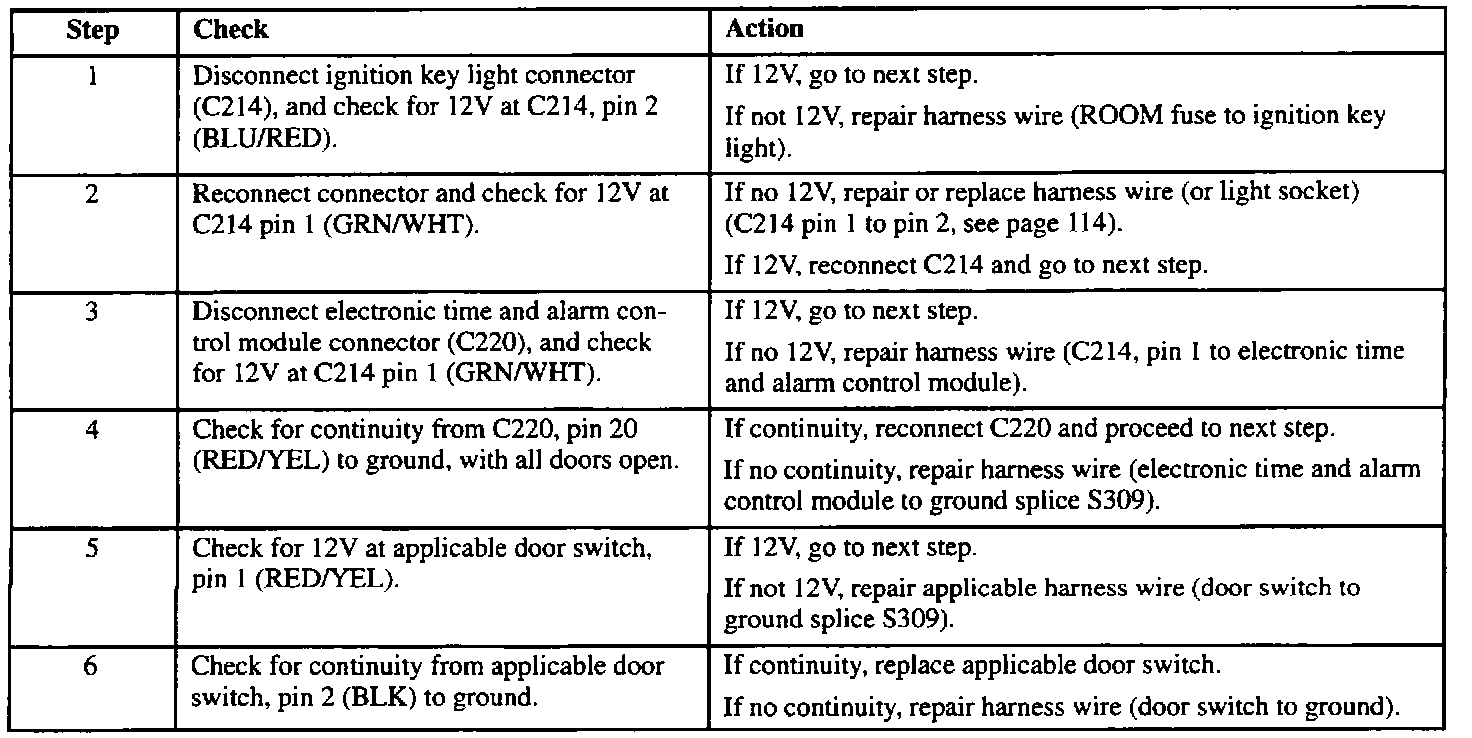

Troubleshooting:




Preliminary Check: Check condition of ROOM fuse. If fuse is open, locate and repair source of overload. Replace fuse. Also, check ignition key bulb. Replace if necessary.
