Home >> Kia >> 1995 >> Sephia Sedan L4-1.6L SOHC 16V >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Pin Information >> C248 >> Pins 20-22

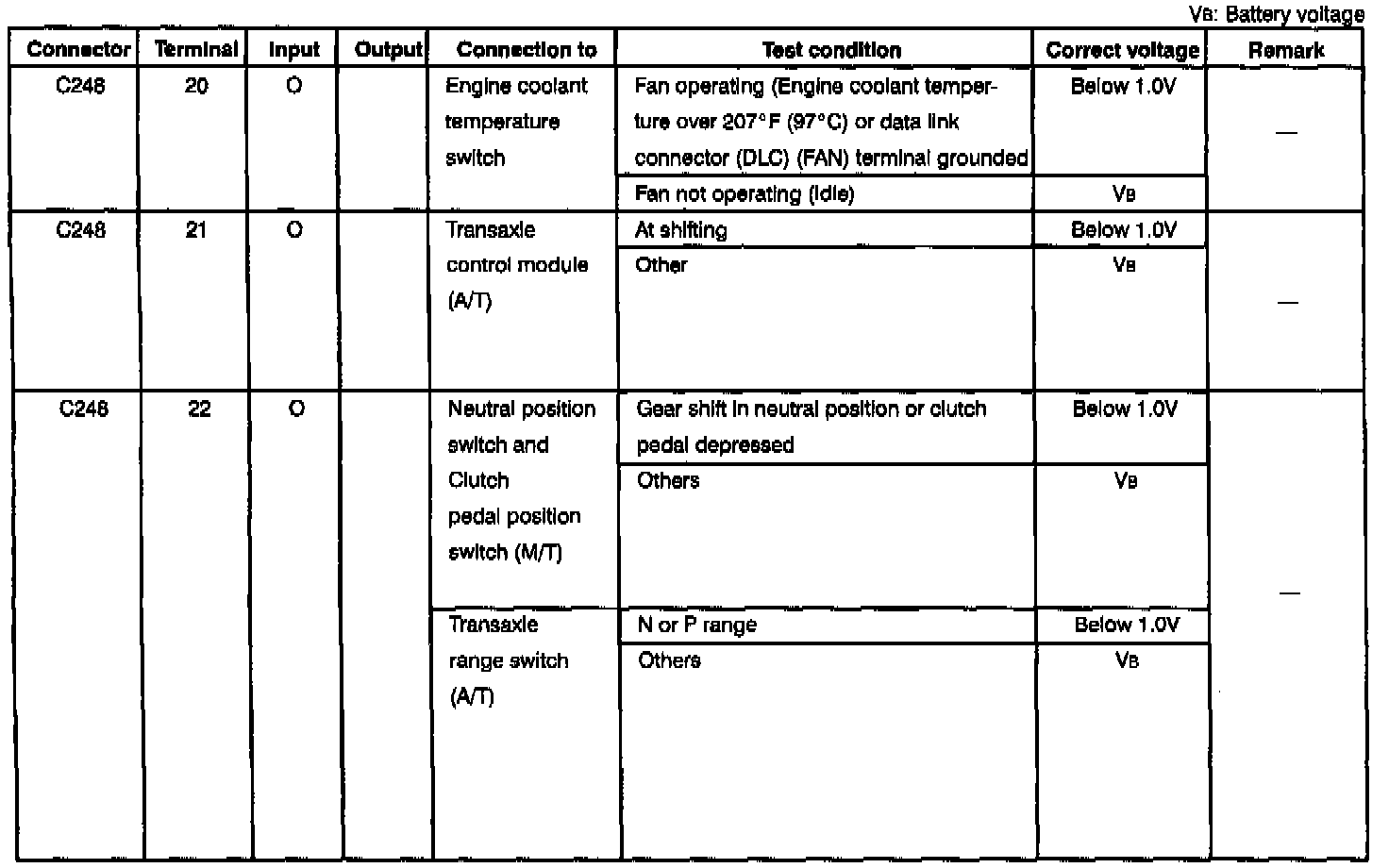

Pins 20-22

Description:
