Ignition System - Key Usage/Applications

VOLUME
1

GROUP
Body

NUMBER
006

MODEL
Sportage

DATE
August, 1995

SUBJECT:
1995 Sportage Ignition Key Blank (DOHC equipped with Automatic Transmission)

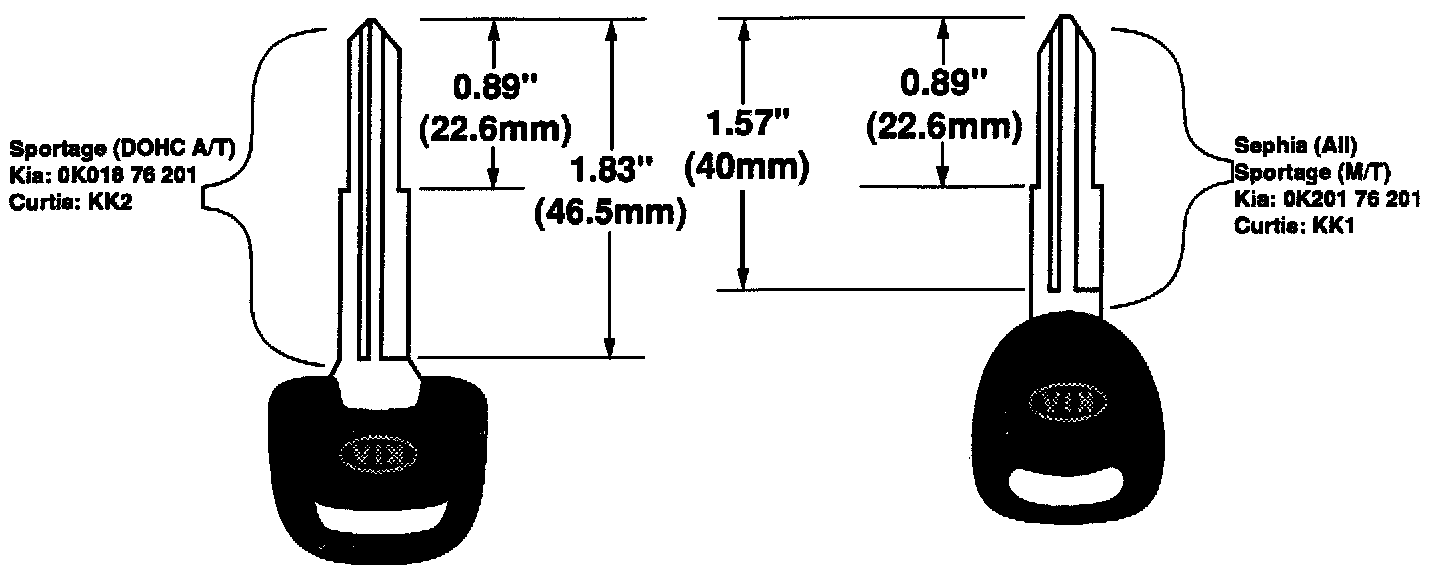

1995 Sportage models equipped with DOHC engines and Automatic Transmissions use an ignition key that is 0.26" (6.5 mm) longer (shank length) than the ignition key currently in use for all Sephia models and for Sportage models equipped with Manual Transmissions.

This ignition key length change accommodates a new 1995 Sportage (DOHC/AT) ignition switch and can be identified by its longer length and wider, more rectangular shaped rubberized head.

For replacement purposes, the Key Codes and the cutting procedures for this longer ignition key blank are unchanged. Additionally, this longer ignition key blank can be used as a replacement for all models of Sportage and Sephia.

Kia Parts Information

^ All Sephia/1995 Sportage models equipped with Manual Transmission:
Part Number - 0K201 76 201

^ 1995 Sportage models equipped with Automatic Transmission:
Part Number - 0K018 76 201

Notice:
Part Number 0K018 76 201 can be used as a replacement for all Sportage and Sephia models.

Curtis Key Blank Part Numbers

^ All Sephia/1995 Sportage (M/T): KK1

^ 1995 Sportage (DOHC with A/T): KK2

Notice:
Curtis will replace P/N KK1 with P/N KK2 when supplies of KK1 are exhausted.
